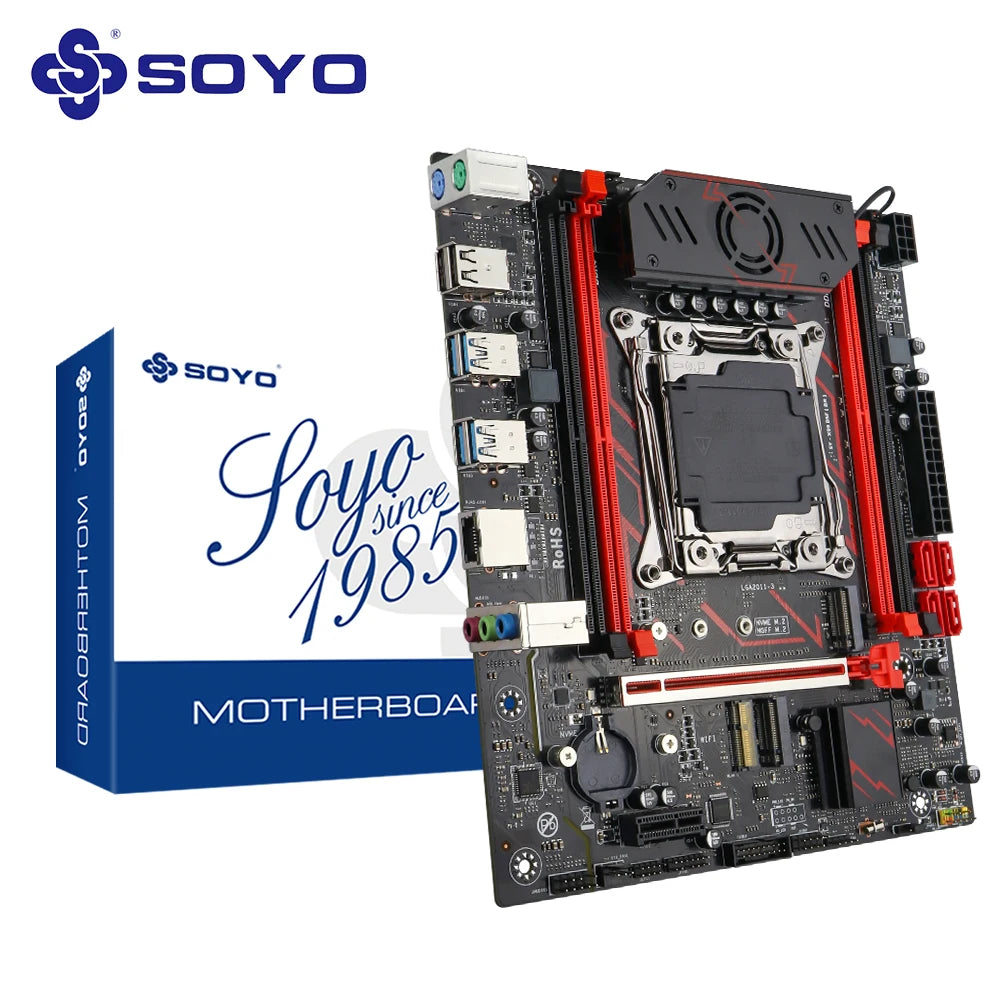

SOYO X99 Gaming Motherboard Set C612 Chipset TPM2.0 Pin with E5 2680 V4 CPU & DDR4 16G (2*8G) 2133MHz RAM PCIE3.0 for Desktop PC
Differences between packages

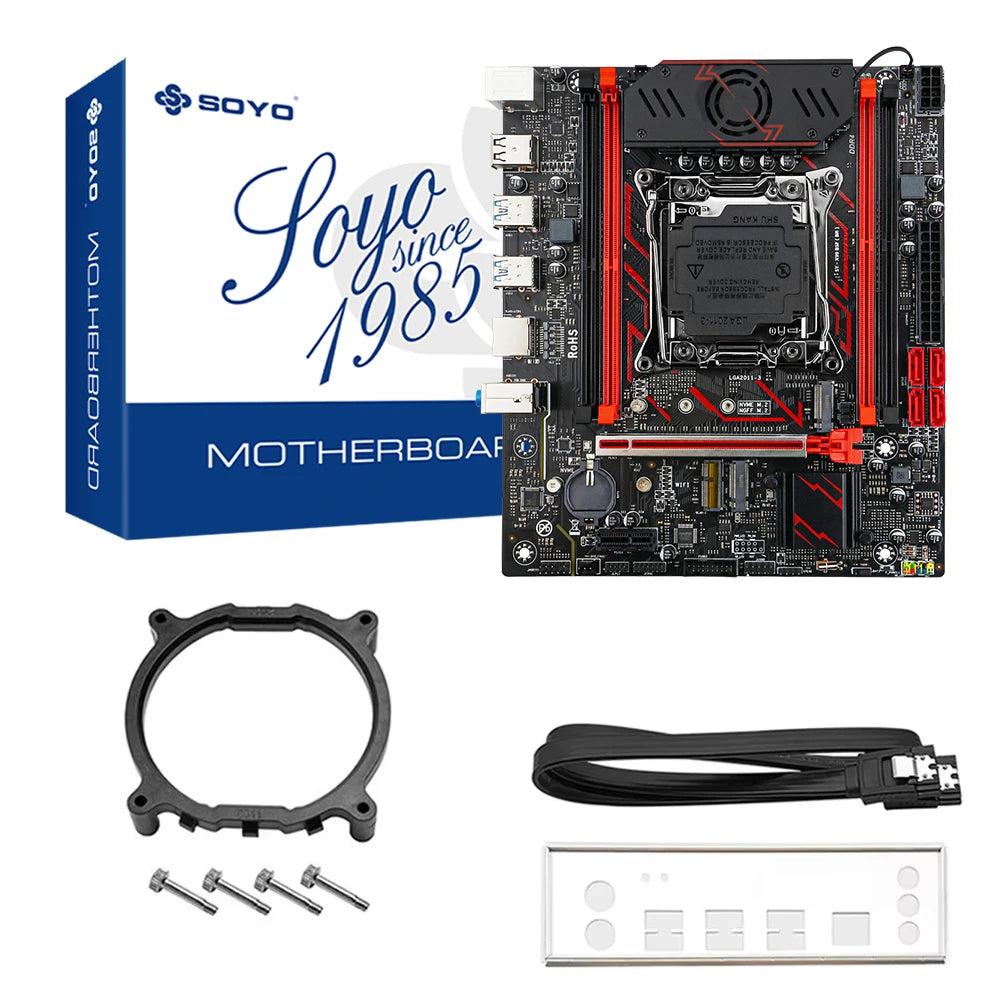

Motherboard+CPU: 1*SY-X99 C612+1*E5 2680 V4 CPU

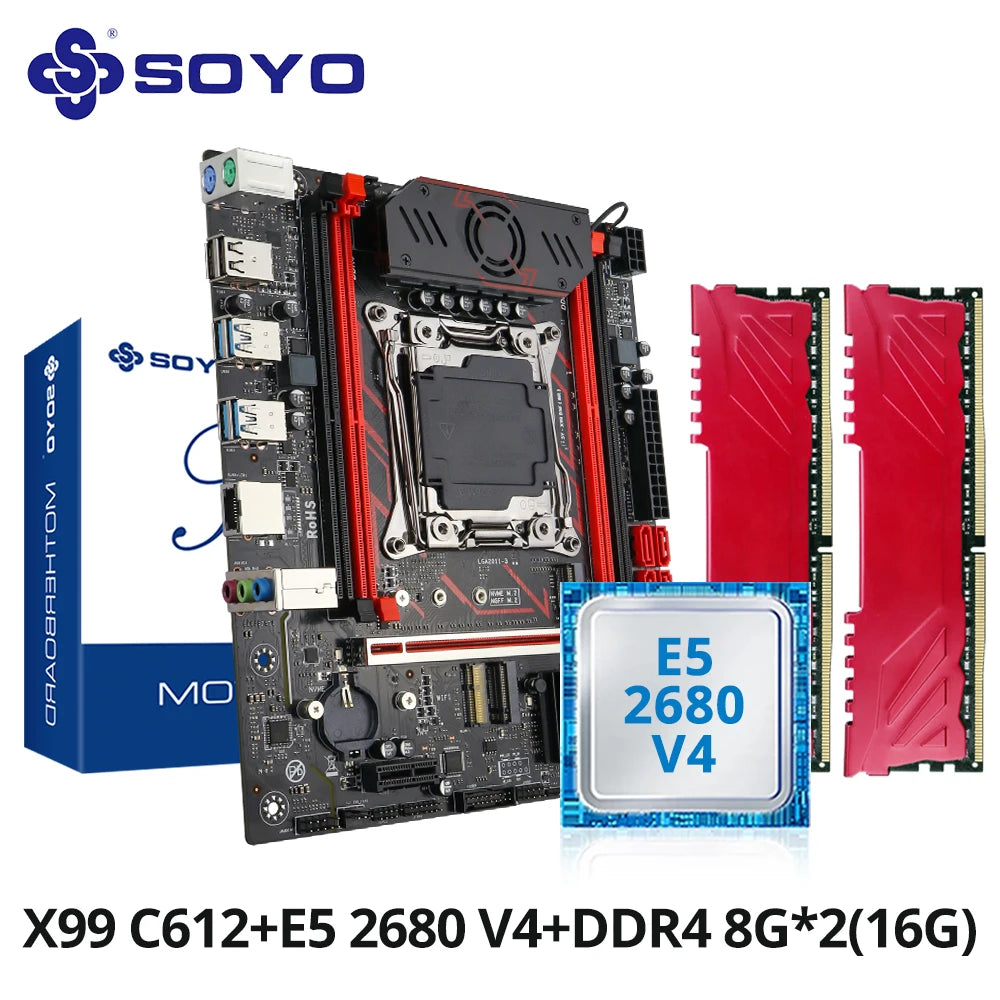

Motherboard+CPU+RAM: 1*SY-X99 C612+1*E5 2680 V4 CPU+2*DDR4 8G
Battery:
The CR2032 battery soldered to the motherboard will be removed before shipping, CN Post and the Chinese Customs have clear restrictions on the export of lithium batteries.
CPU:
Model: Intel Xeon
Model Number: E5 2680 V4
CPU Frequency: 2.4 GHz
Maximum Core Frequency: 3.3 GHz
Socket Type: LGA2011-3
Manufacturing Process: 14nm
Memory Type: DDR4 1600/1866/2133/2400
Number of CPU Cores: 14
Number of Threads: 28
L3 Cache (MB): 35MB
Power Consumption: 120W
The processor will be tested twice before shipping.
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

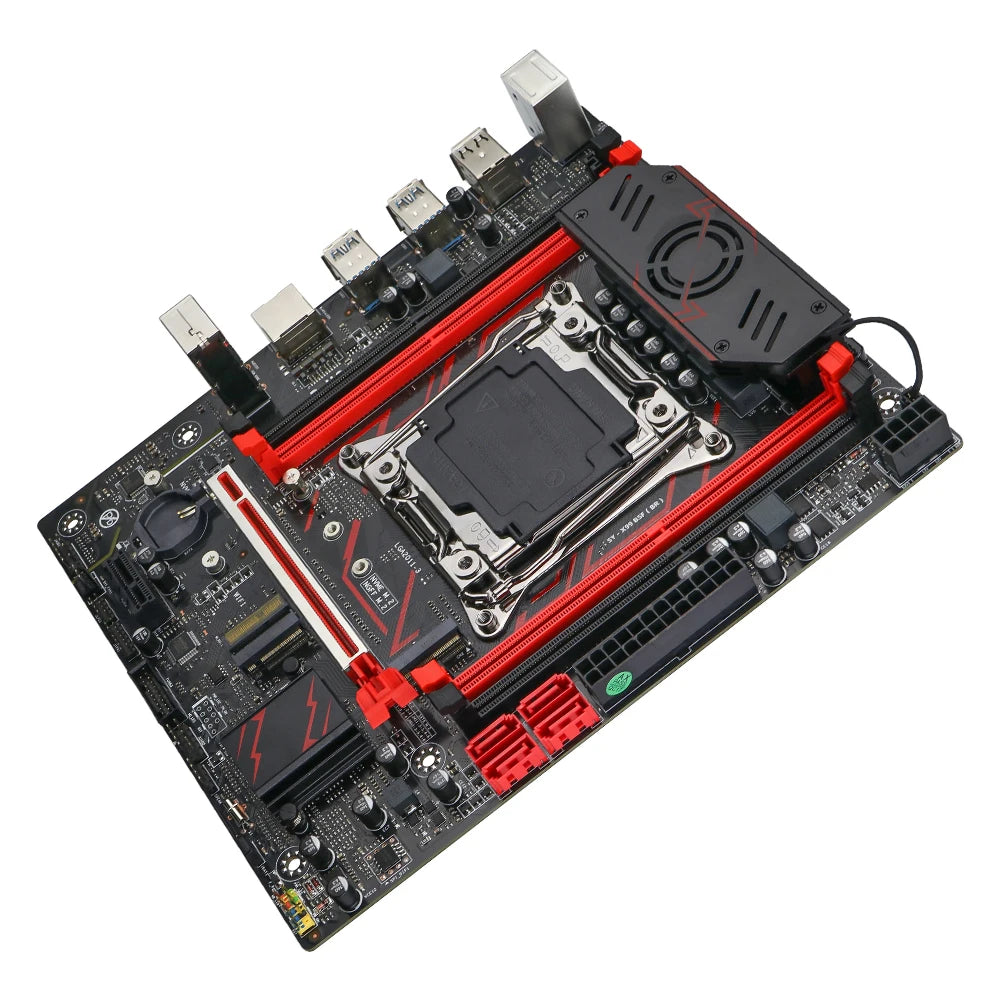

Chipset:
Intel C612
CPU:
Intel Xeon E5 LGA 2011-V3 socket processors
Supported models: E5-2603V3, 2666V3, 2673V3, 2680V3, 2678V3, 2696V3, 2684V4, 2696V4, etc.

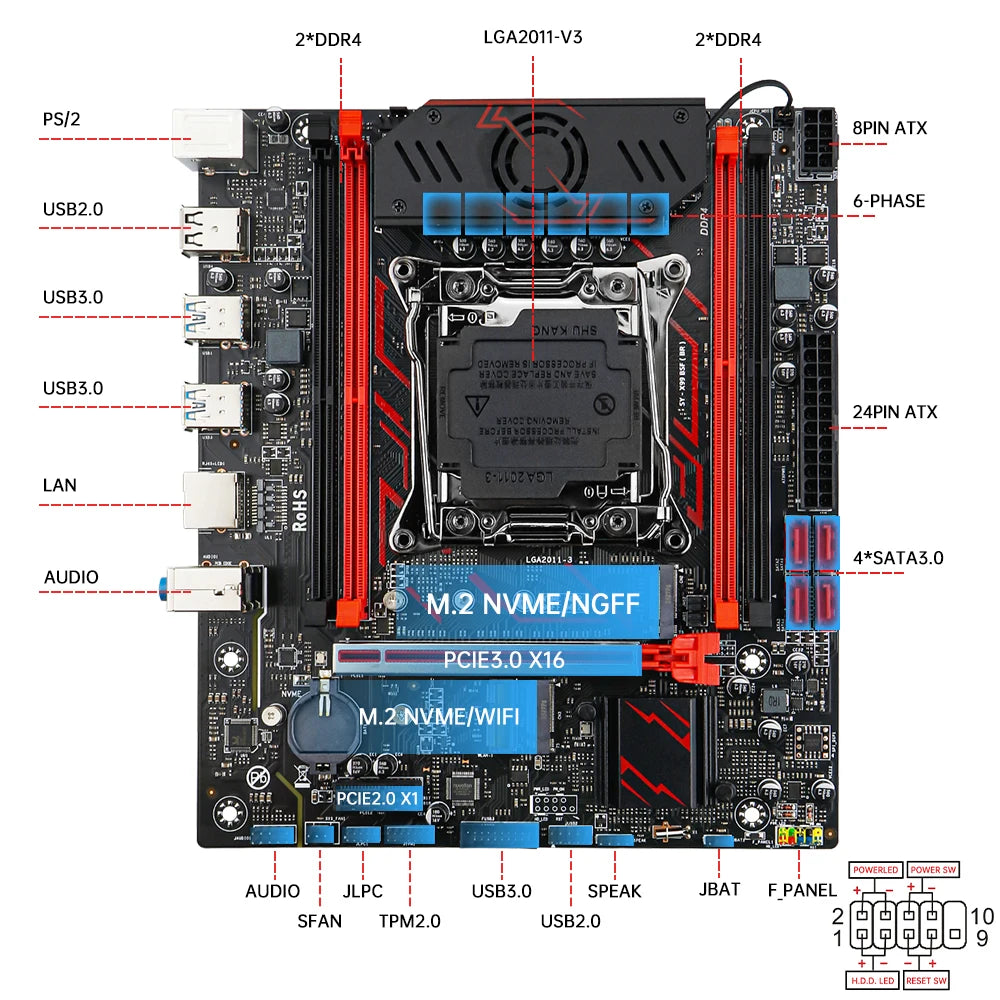

Memory:
4 x DDR4 DIMM slots
Supports 2133/2400MHz (Max), up to 128GB (32GB x 4)
Red slots indicate primary channels
Storage:
2 x M.2 slots:
Upper slot: NVMe protocol (PCIe 3.0 x4/SATA3.0)
Lower slot: NVMe protocol (PCIe 3.0 x4)
4 x SATA3.0 interfaces
Networking:
1 x RJ45 port
LAN chip: Realtek RTL8111H Gigabit Ethernet
PS/2 Ports:
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
Audio:
Rear I/O: 1 x Line Out, 1 x MIC In, 1 x Line In
Internal header: 1 x Front Audio header
Audio chip: Realtek ALC897 HD Audio
USB Ports:

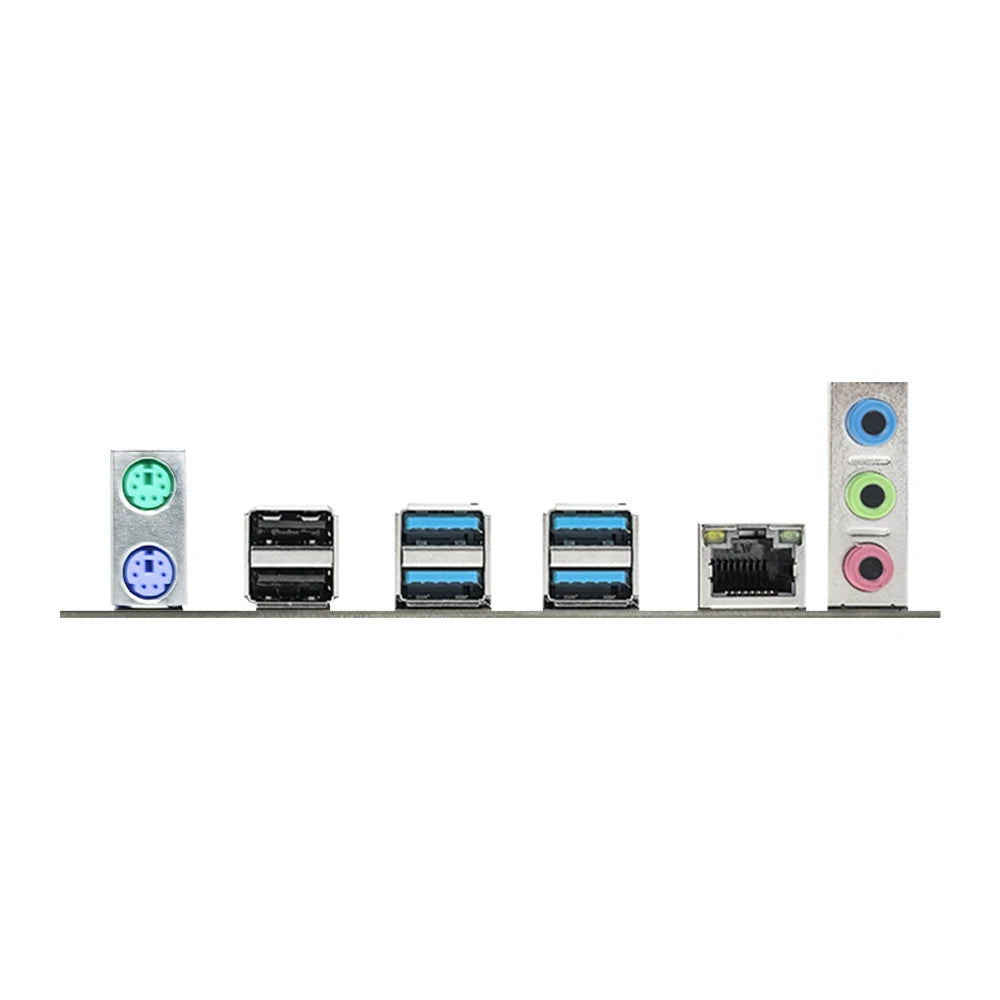

Rear I/O: 2 x USB 2.0, 4 x USB 3.0
Internal headers:
1 x USB 2.0 header (expandable to 2 ports)
1 x USB 3.0 header (expandable to 2 ports)
PCIe Slots:
PCIe1: PCIe x16 3.0 slot (from CPU)
PCIe2: PCIe x1 2.0 slot (from PCH)
Functional Headers:
1 x FPANEL (front panel)
1 x 4-pin CPU fan
1 x 3-pin system fan
1 x JBAT (CMOS clear)
1 x JLPC (LPC debug)
1 x SPEAK (system speaker)
Power Input:
24-pin ATX + 8-pin EPS connectors
Dimensions:
220 x 190mm (4-layer PCB)
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (Gry slots) first. The motherboard's Black RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
