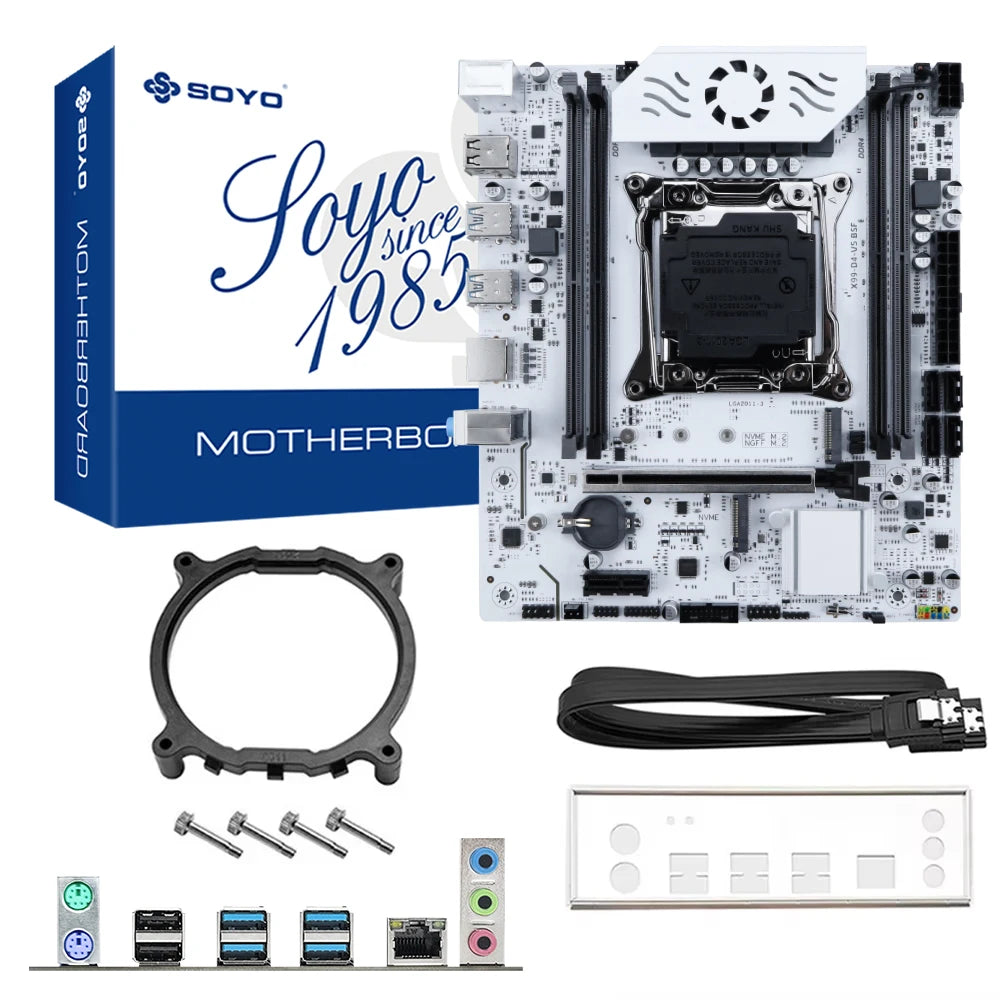

SOYO X99 Gaming Motherboard Kit C612 Chip with E5 2650 V3 CPU & DDR4 16G*1 2133MHz Memory NVME PCIE3.0 SATA3.0 TPM2.0 Interface
$201.99 USD
Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.
Differences between packages
Motherboards: 1*SY-X99 C612 otherboard
Motherboard+CPU: 1*SY-X99 C612+1*E5 2650 V3 CPU
Motherboard+CPU+RAM: 1*SY-X99 C612+1*E5 2650 V3 CPU+1*DDR4 16G
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

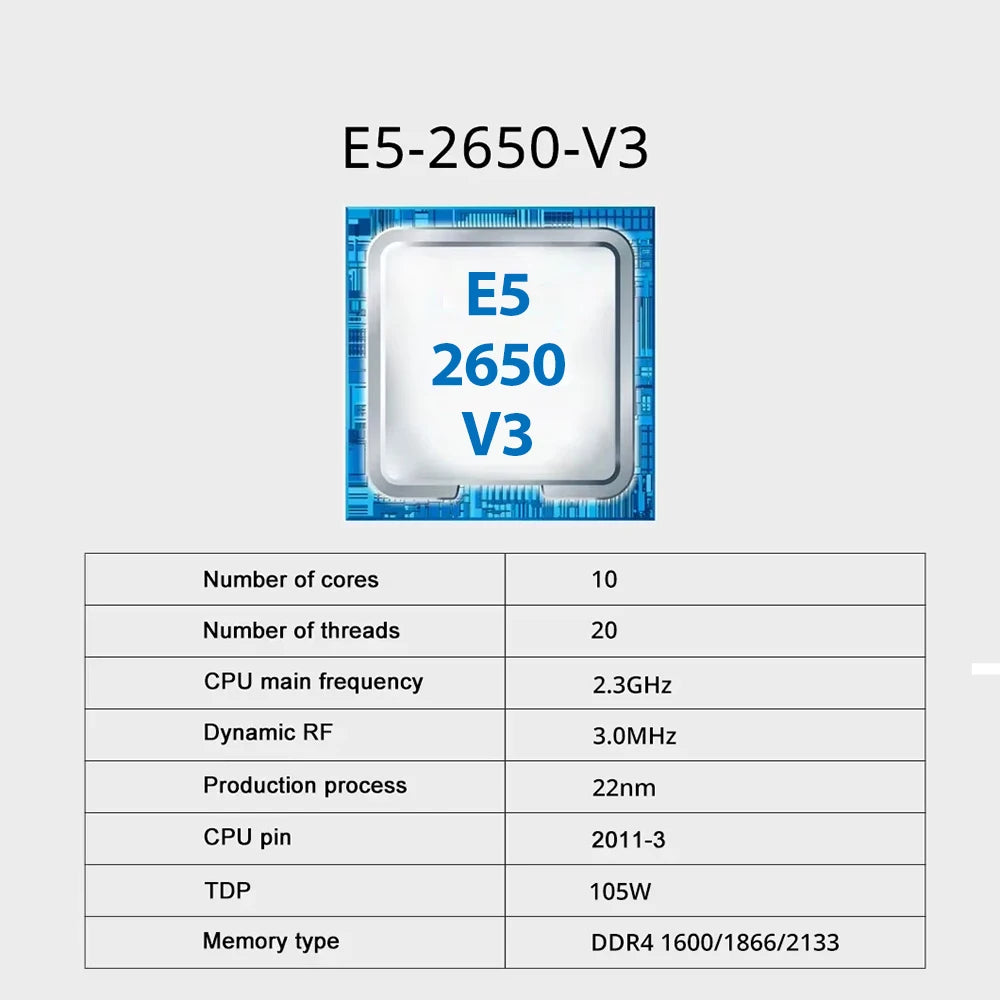

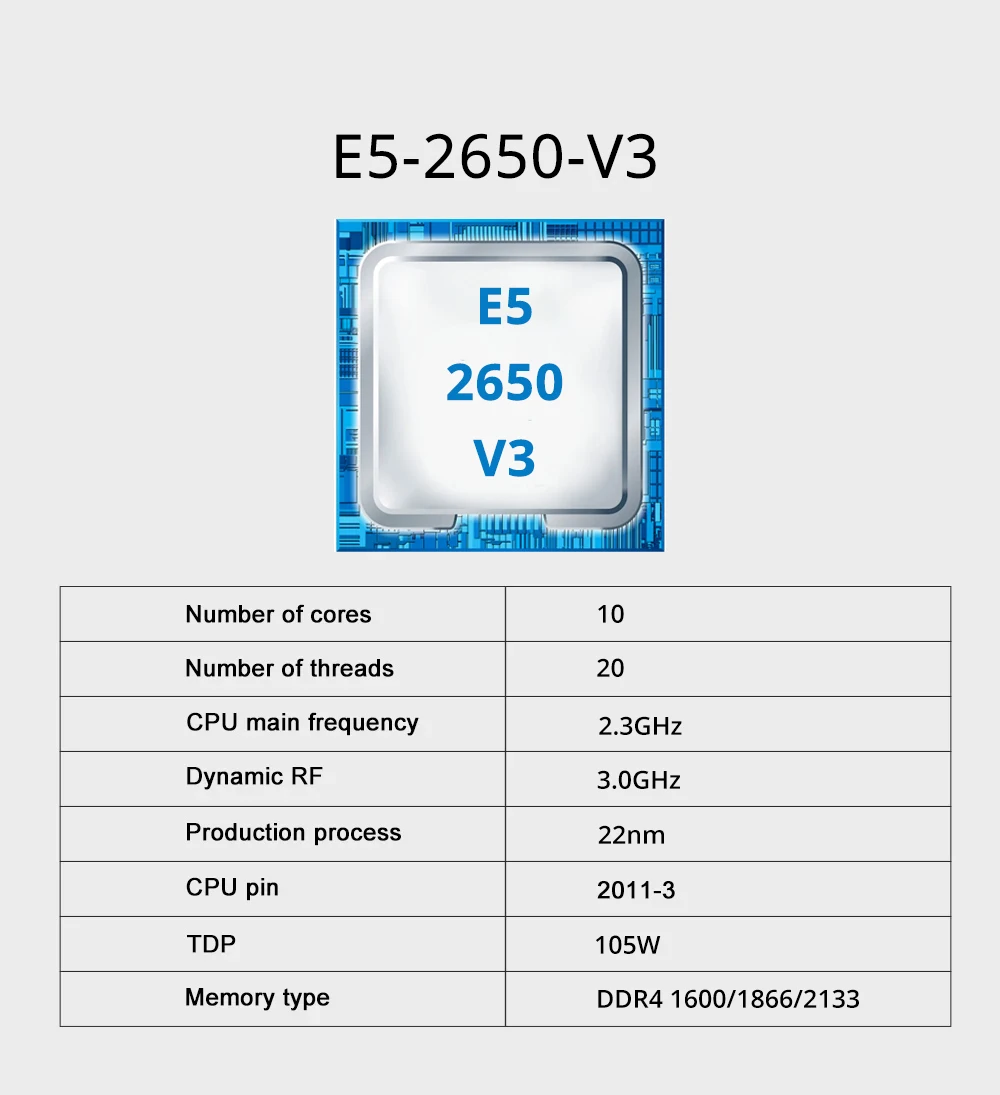

CPU:
Processor Series: Intel Xeon
Model number: E5 2650 V3
Processor Speed: 2.3GHz
Maximum core frequency: 3.0GHz
Processor Socket: LGA2011-3
Process: 22nm
Memory type: DDR4 1600/1866/2133
The number of CPU cores: 10
The number of threads: 20
L3 cache size (MB): 25 MB
Wattage:105 Watts
cpu will be final double tested before shipping

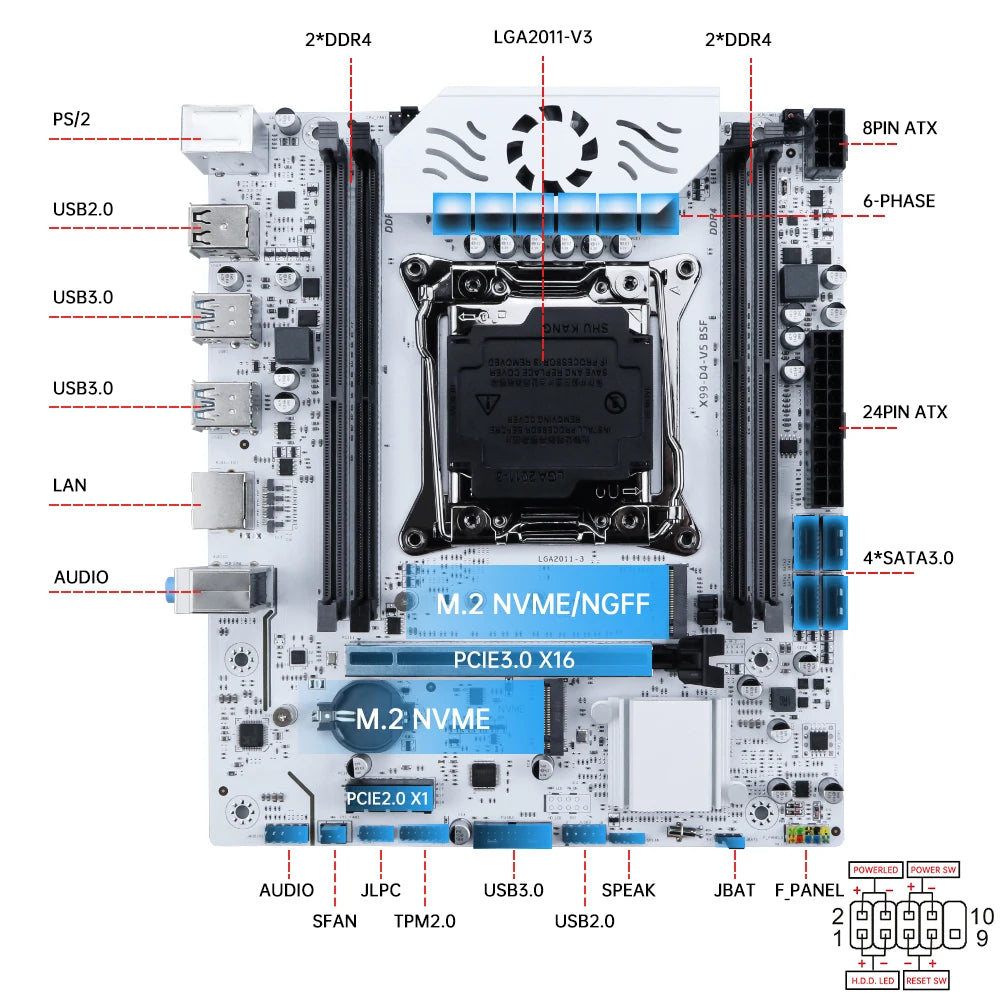

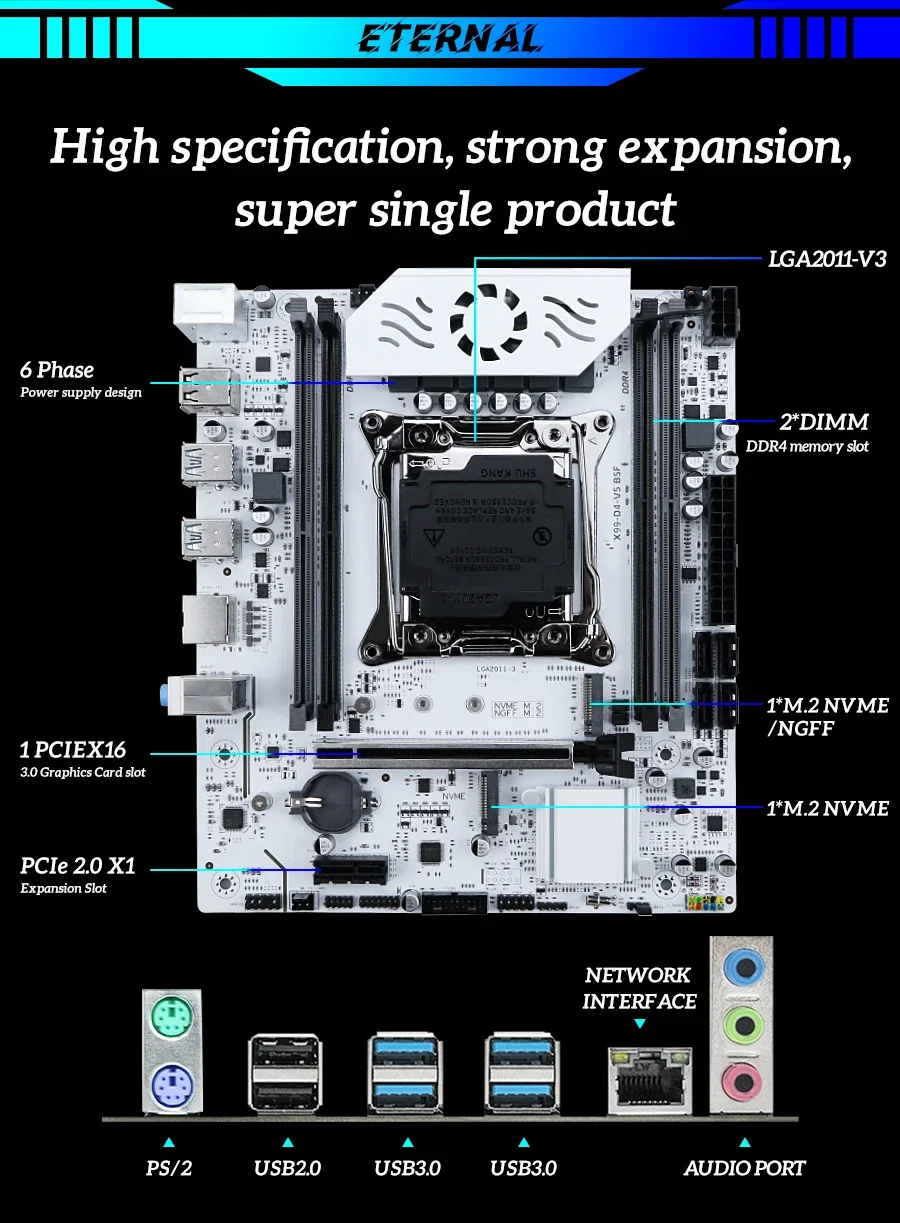

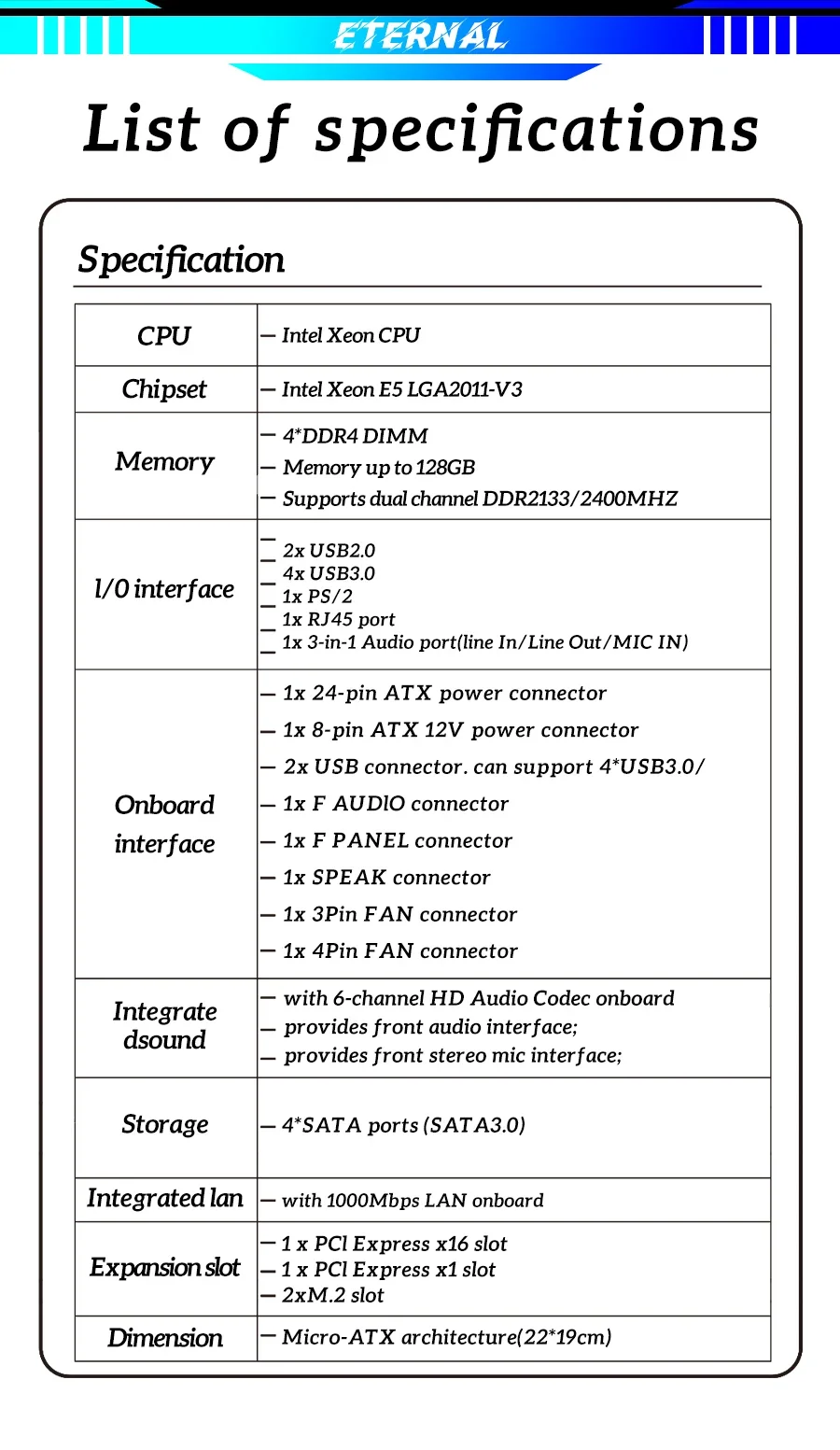

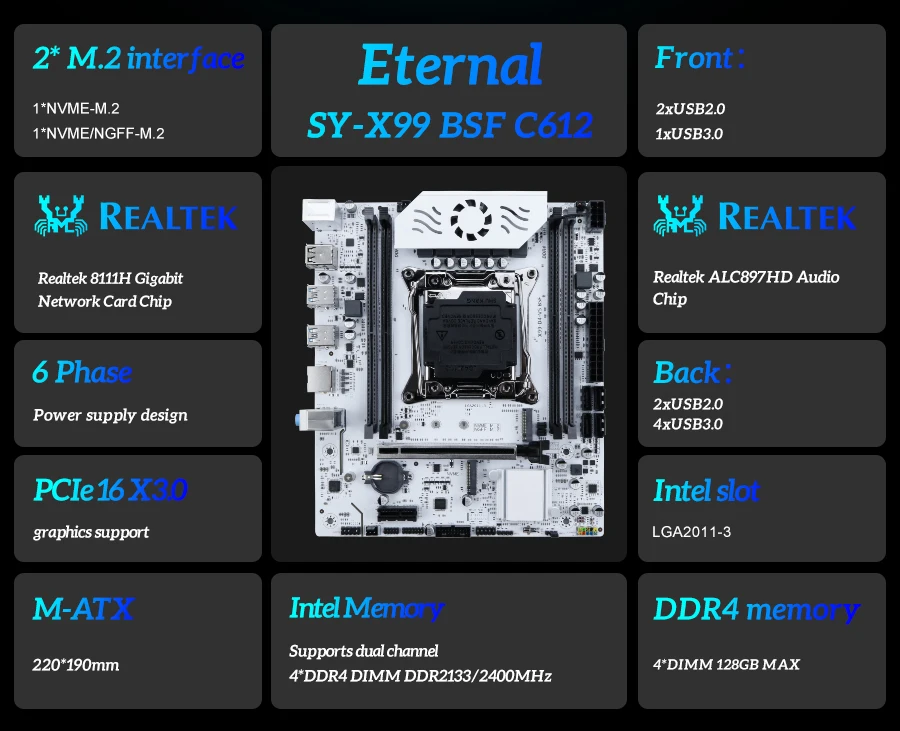

Specifications
Chipset
C612
CPU
Intel Xeon E5 LGA2011-V3 Socket CPU

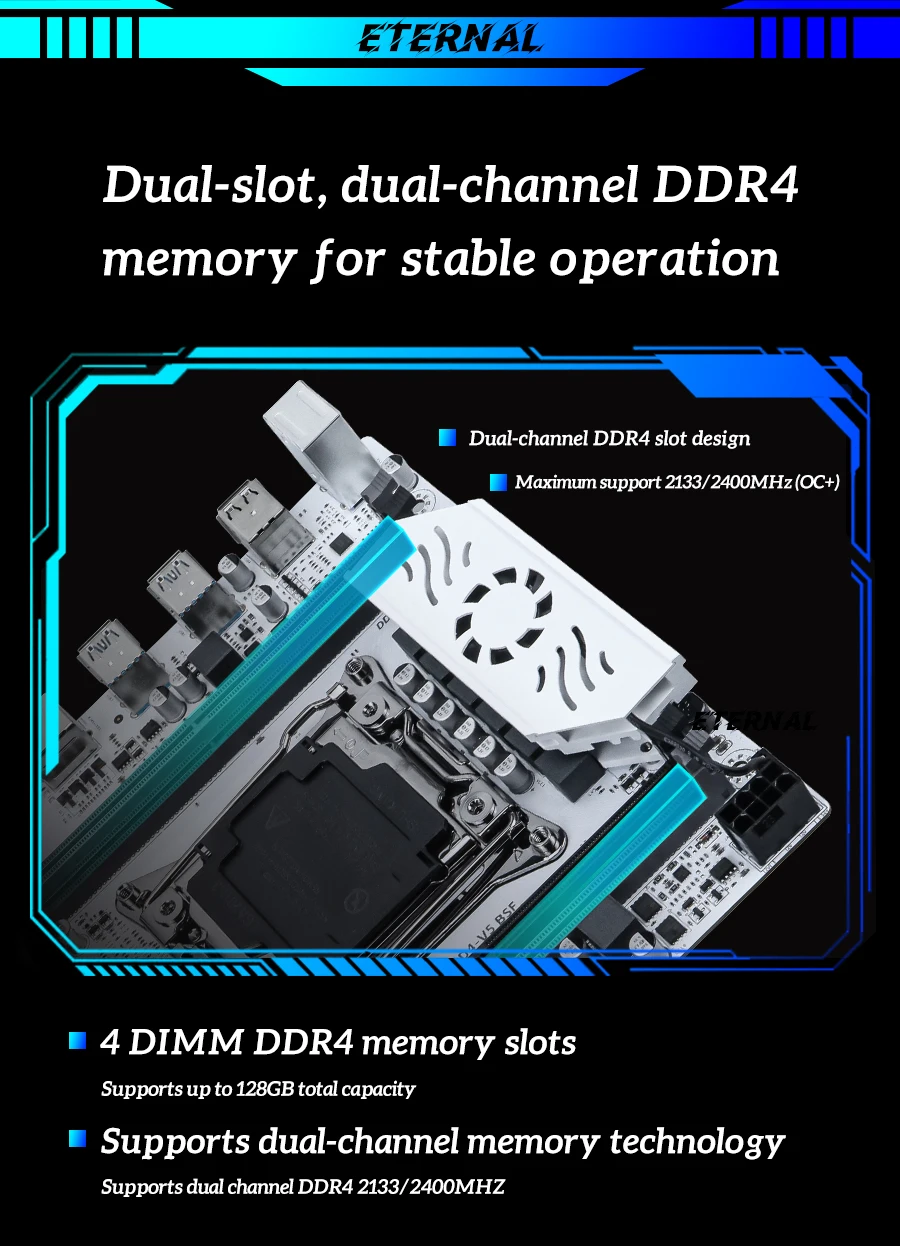

Memory
4*DDR4 DIMM slots, 2133/2400MHz (Max)
Supports up to 128GB (32GB*4)
Black slots are primary channels
Storage

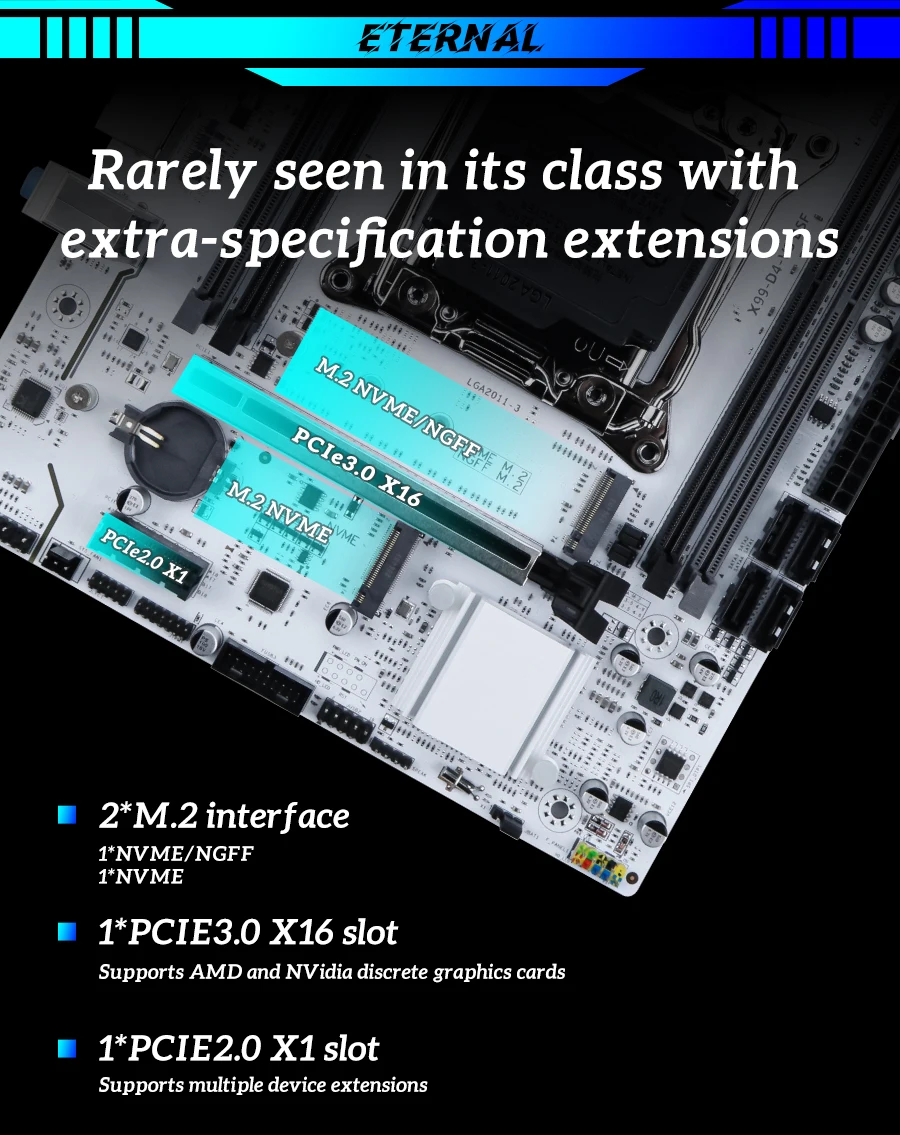

2*M.2 slots:
Upper slot: NVMe Protocol (PCIe 3.0 x4/SATA3.0)
Lower slot: NVMe Protocol (PCIe 3.0 x4)
4*SATA interfaces (SATA3.0)
TPM
1*14PIN header (compatible with MSI 14PIN/TPM2.0 module)
Network
1*RJ45 port
LAN Chip: RTL8111H Gigabit Ethernet
PS/2
1*KB (Keyboard) port + 1*MS (Mouse) port
Audio
Ports: 1Line Out, 1MIC In, 1*Line In
Internal header: 1*F_Audio
Audio Chip: Realtek ALC897 HD Audio
USB Interfaces
Rear I/O: 2*USB2.0 + 4*USB3.0
Internal headers:
1*USB2.0 header (expandable to 2 USB2.0 ports)
1*USB3.0 header (expandable to 2 USB3.0 ports)
PCIE Slots
PCIE1: PCIE x16 3.0 slot (from CPU)
PCIE2: PCIE x1 2.0 slot (from PCH)
Functional Headers
1FPANEL (Front Panel header), 14Pin CPU Fan, 1*3Pin Fan, 1*JBAT, 1JLPC, 1SPEAK
Power Input
24Pin + 8Pin ATX power connectors
Dimensions
220 x 190mm
