(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (Gray slots) first. The motherboard's Black RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!

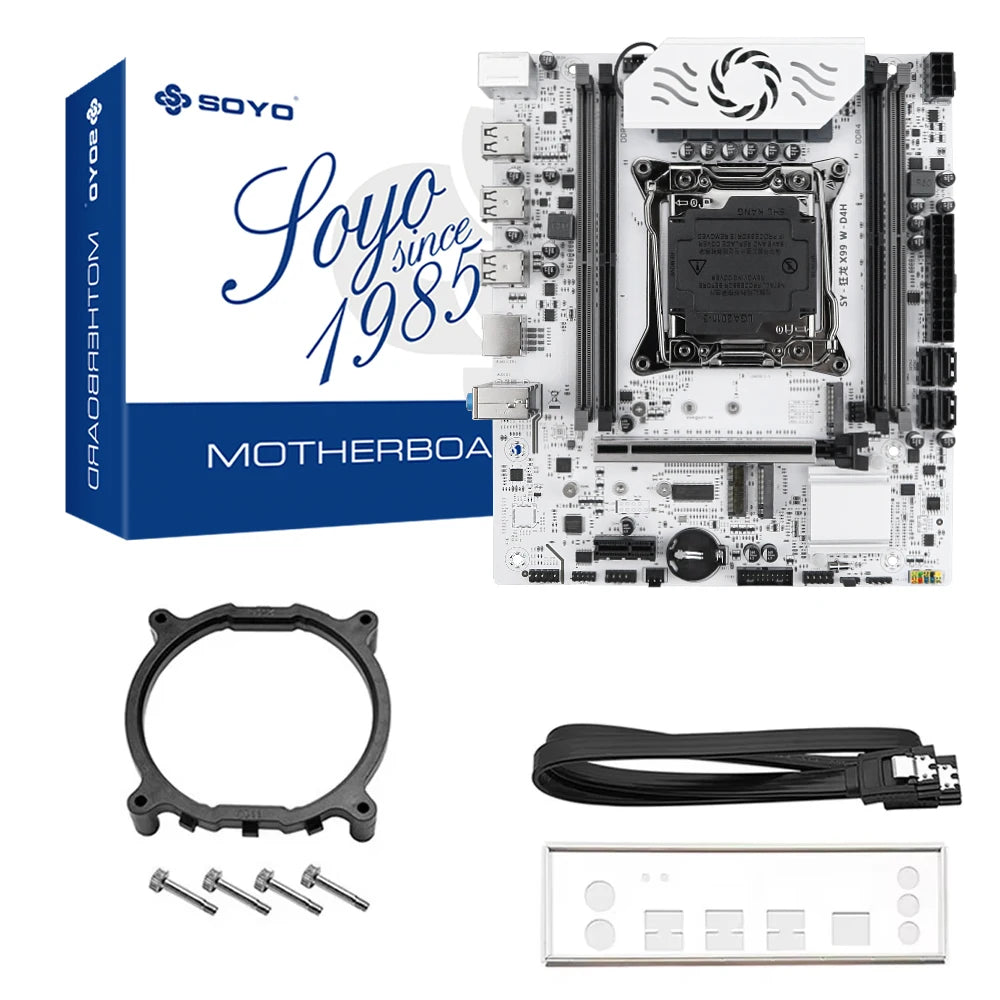

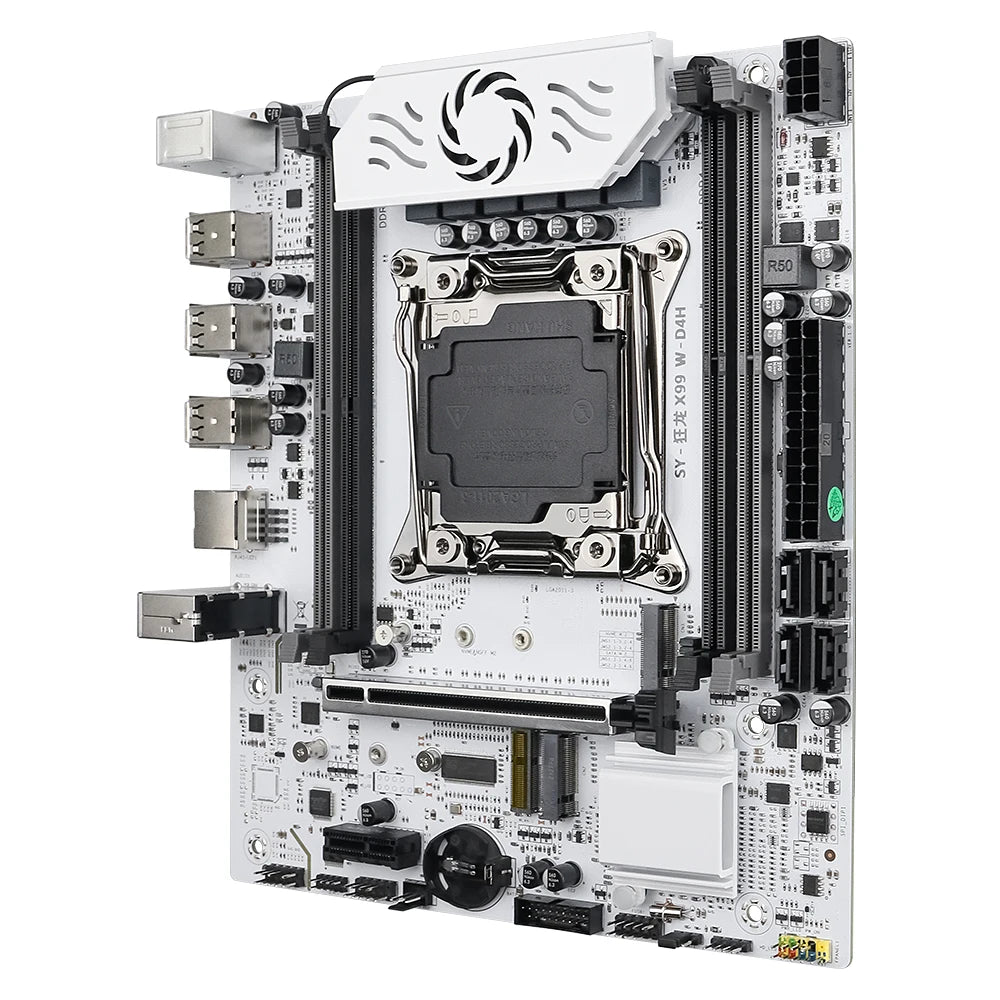

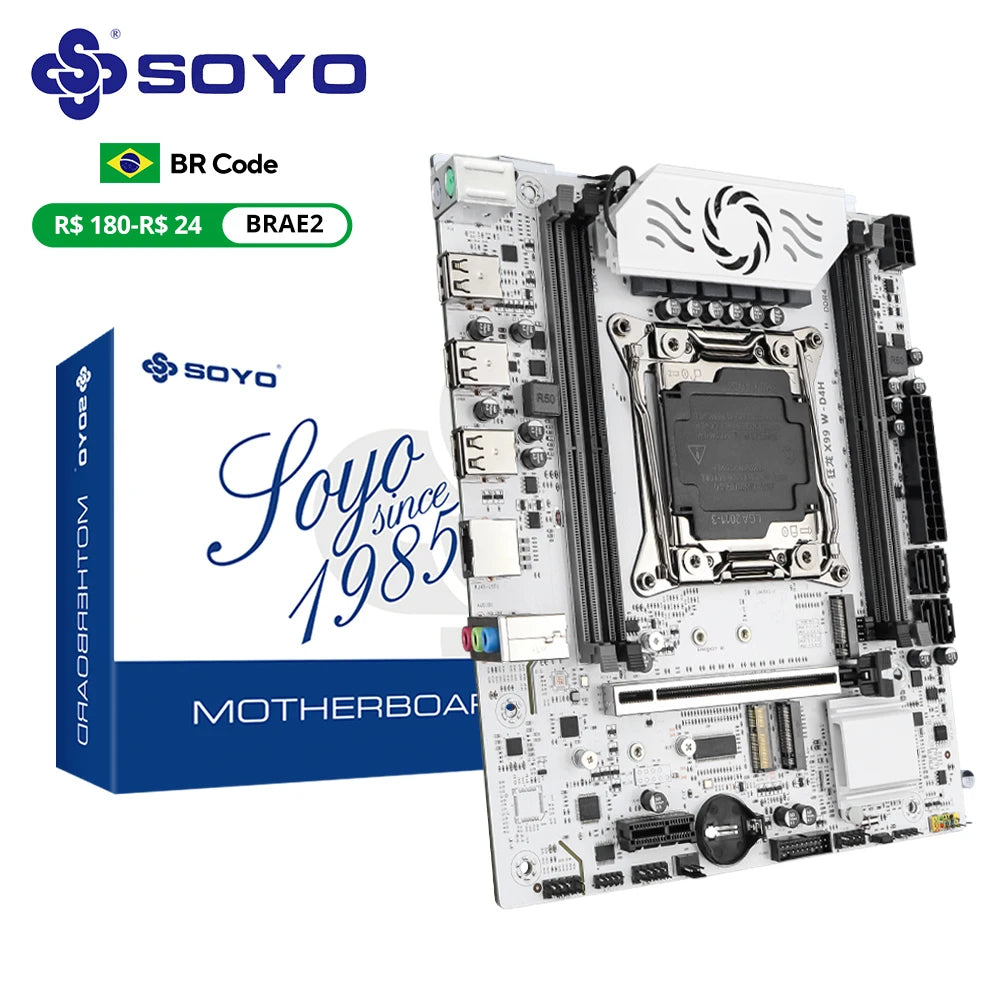

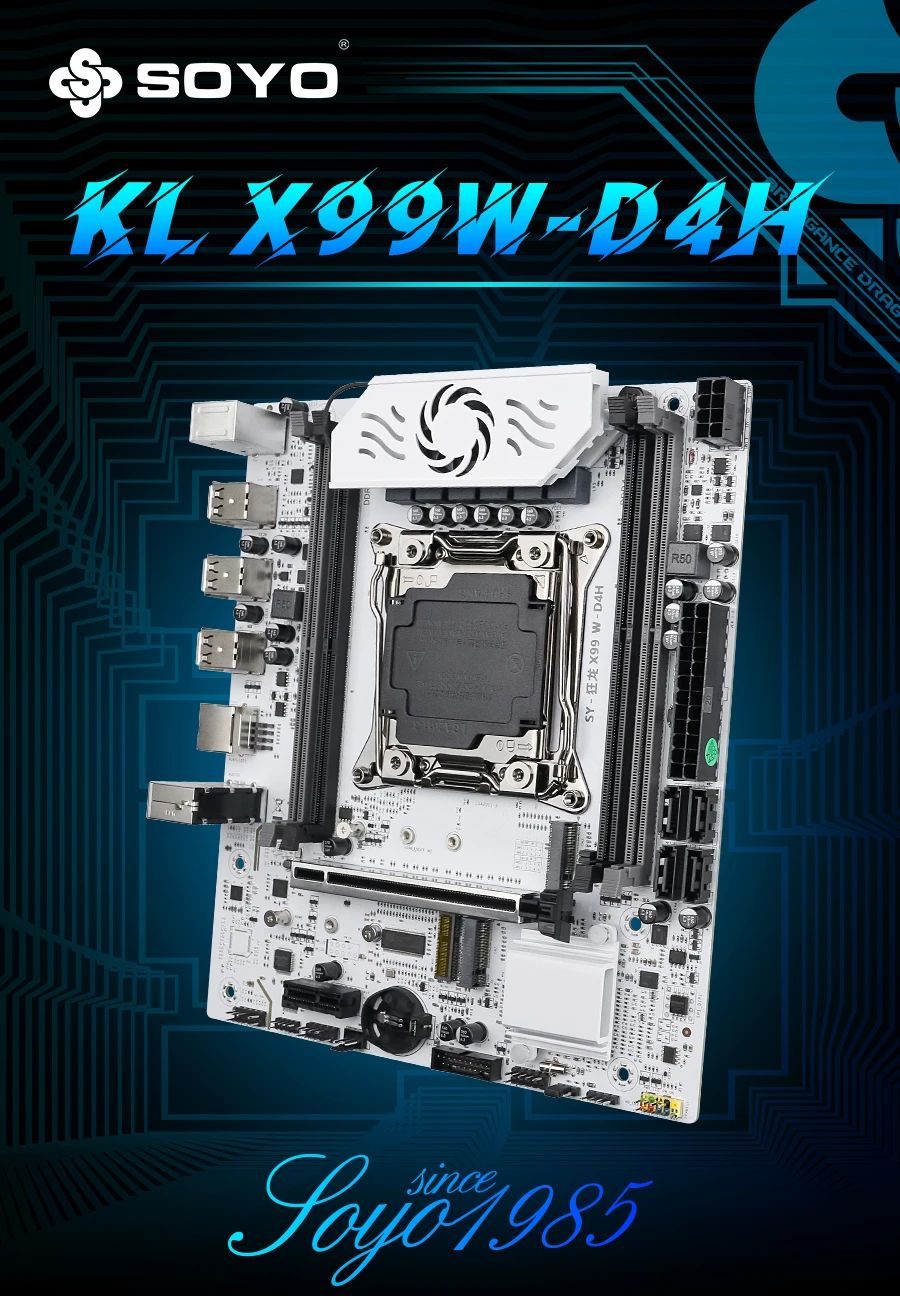

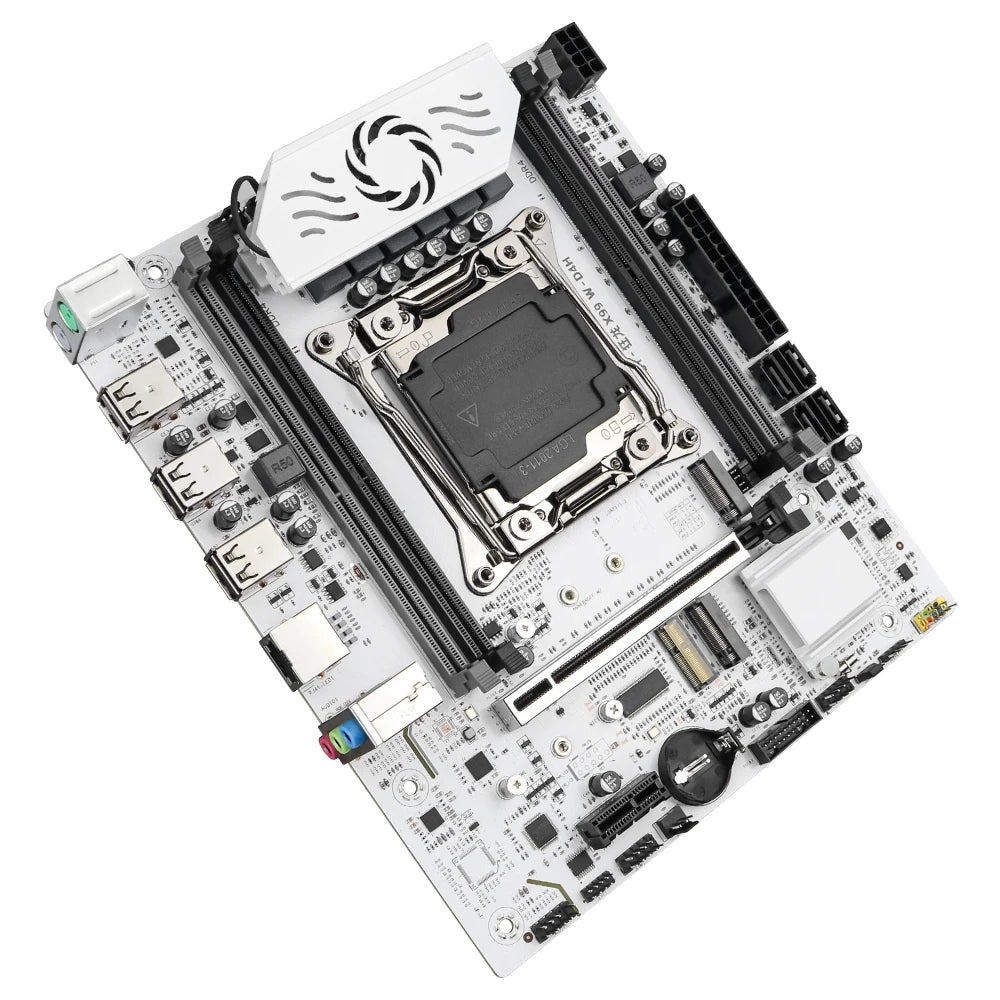

SOYO World Premiere X99 Gaming Motherboard Supports Xeon E5 Series CPU Dual Channel DDR4 M.2 NVME PCIE3.0 SATA for Desktop Host
$133.99 USD

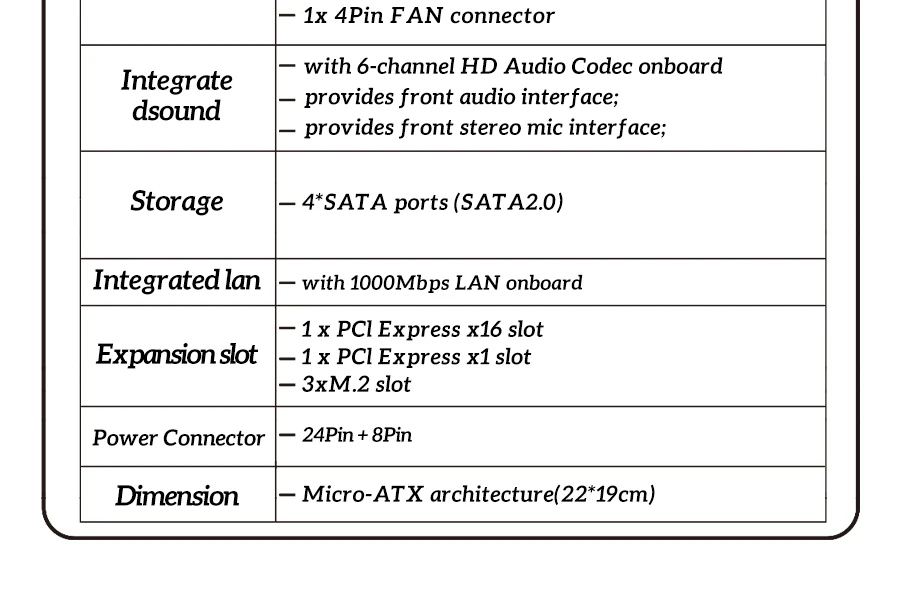

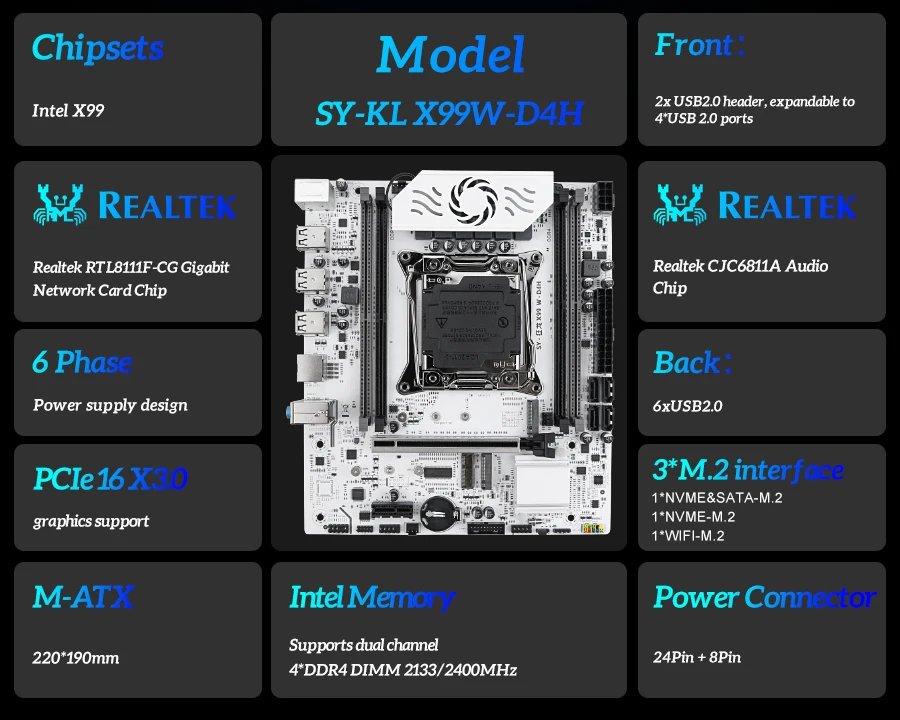

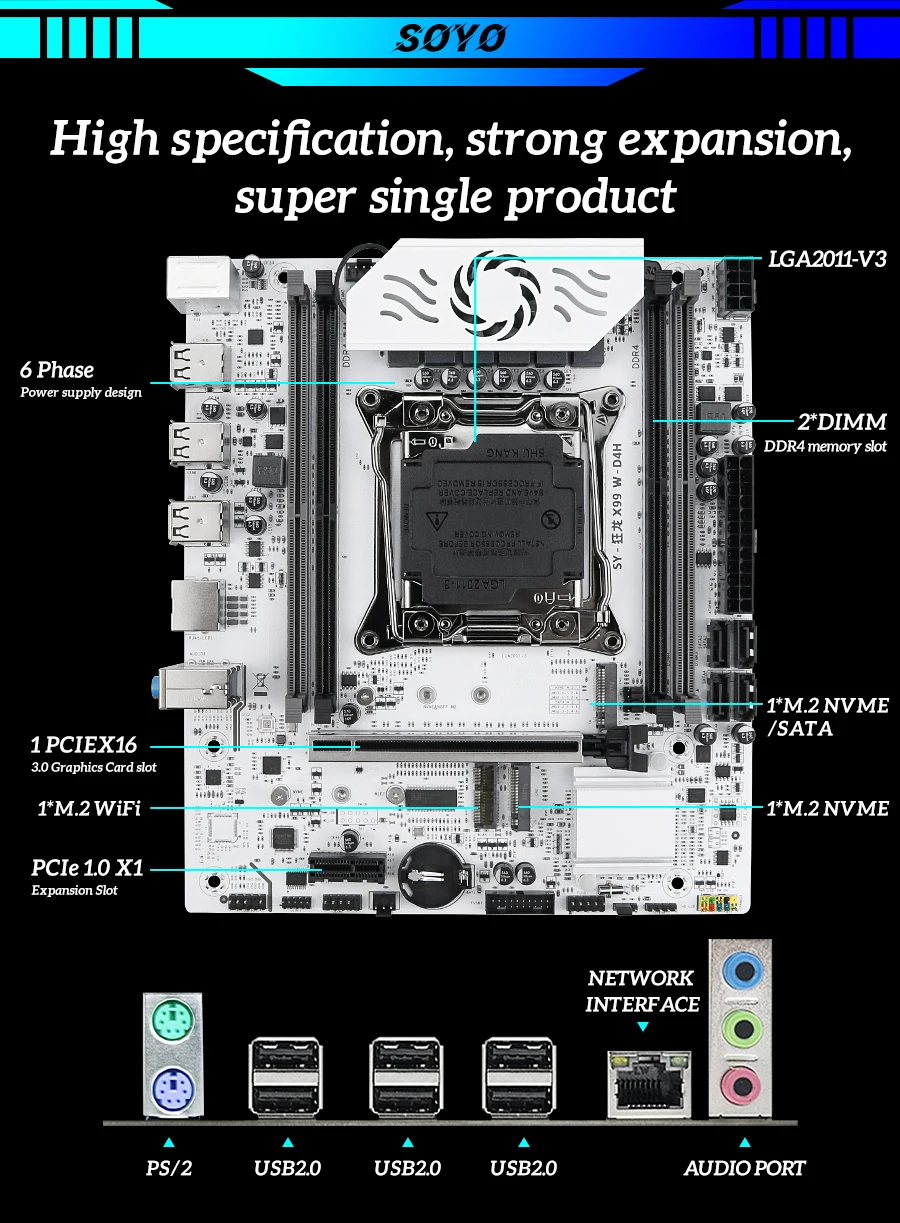

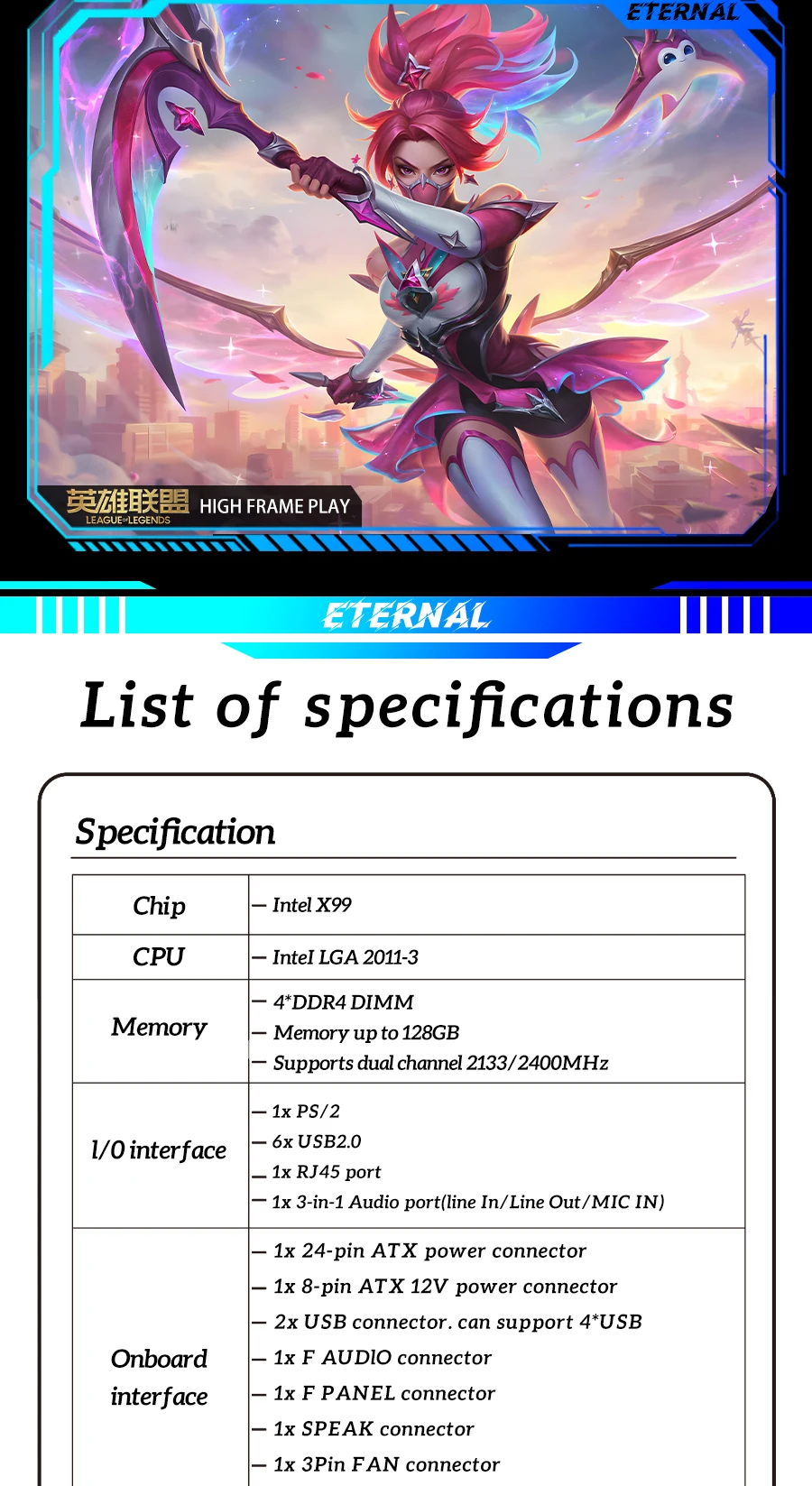

Specifications
Chipset
Intel X99
CPU
Intel Xeon E5 LGA2011-V3 Socket CPU

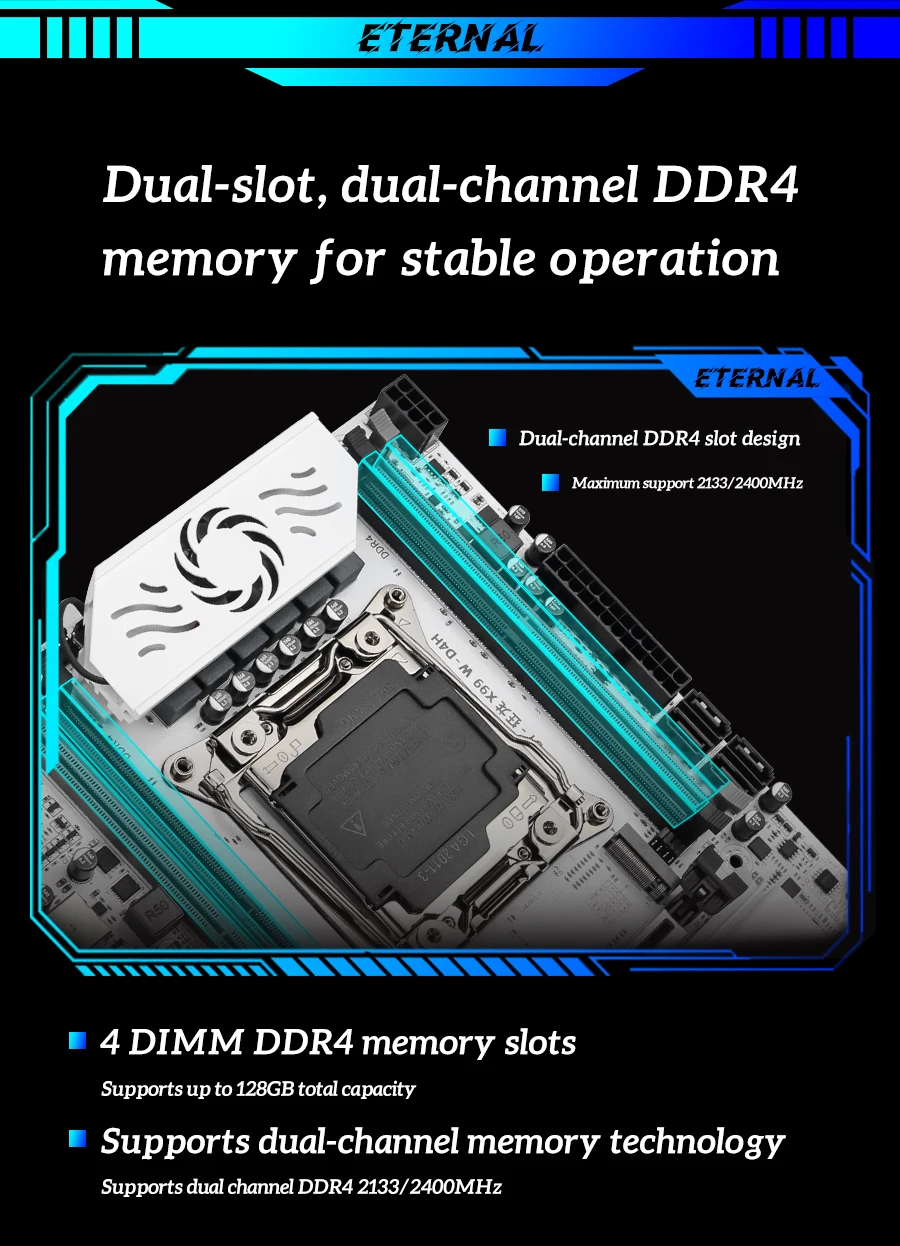

Memory
4*DDR4 DIMM slots, 2133/2400MHz (Max)
Supports up to 128GB (32GB*4)
Black slots are primary channels
Storage

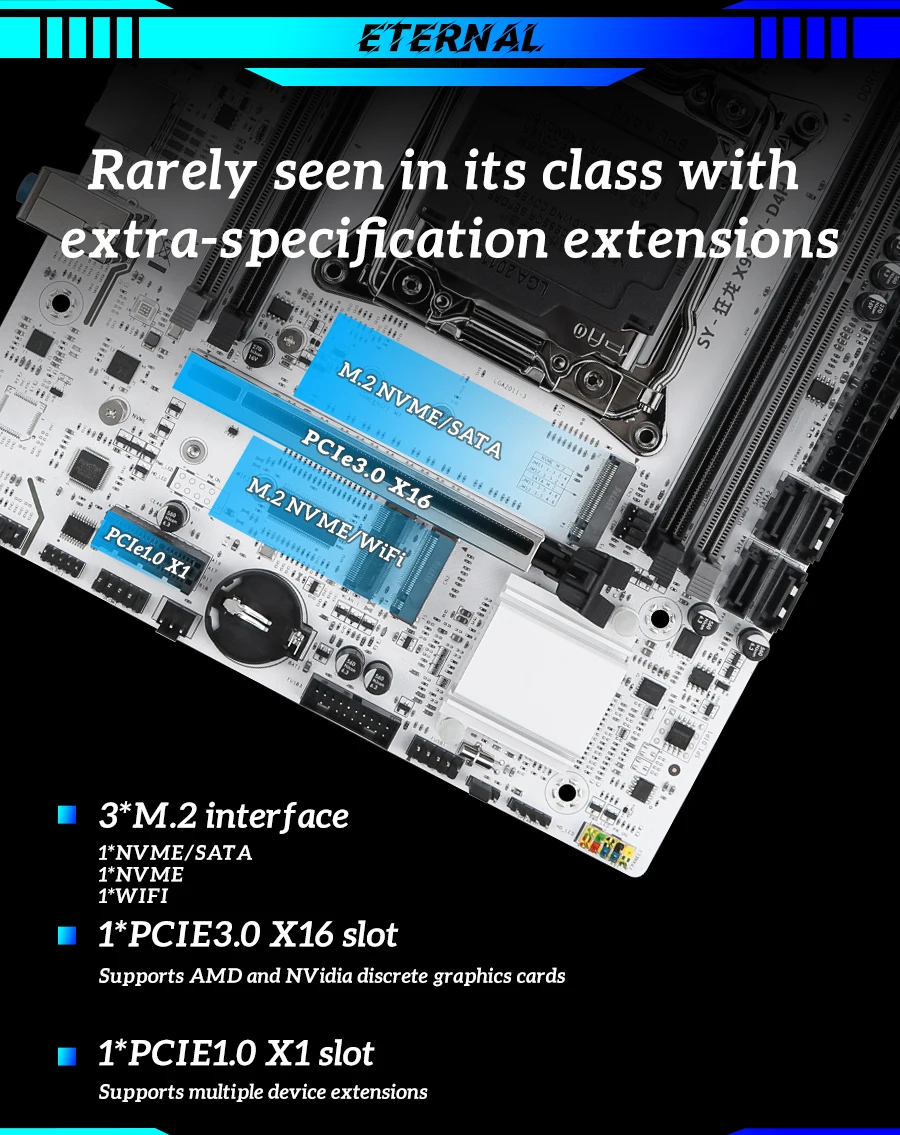

2*M.2 slots:
Upper slot: NVMe Protocol (PCIe 3.0 x4/SATA2.0)
Lower slot: NVMe Protocol (PCIe 3.0 x4)
4*SATA interfaces (SATA2.0)
Network
1*RJ45 port
LAN Chip: RGigabit Ethernet
PS/2
1*KB (Keyboard) port + 1*MS (Mouse) port
Audio
Ports: 1Line Out, 1MIC In, 1*Line In
Internal header: 1*F_Audio

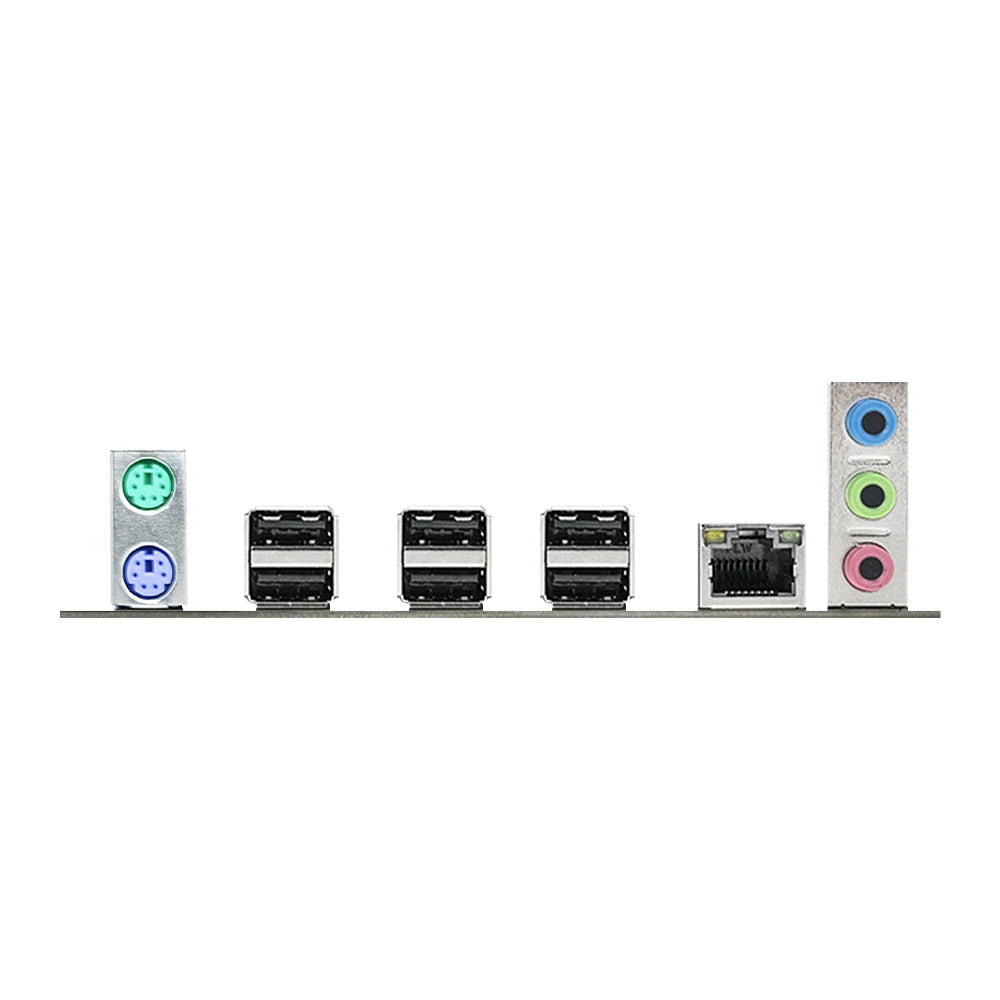

USB Interfaces
Rear I/O: 6*USB3.0
Internal headers:
2*USB2.0 header (expandable to 2 USB2.0 ports)
PCIE Slots
PCIE1: PCIE x16 3.0 slot (from CPU)
PCIE2: PCIE x1 1.0 slot (from PCH)

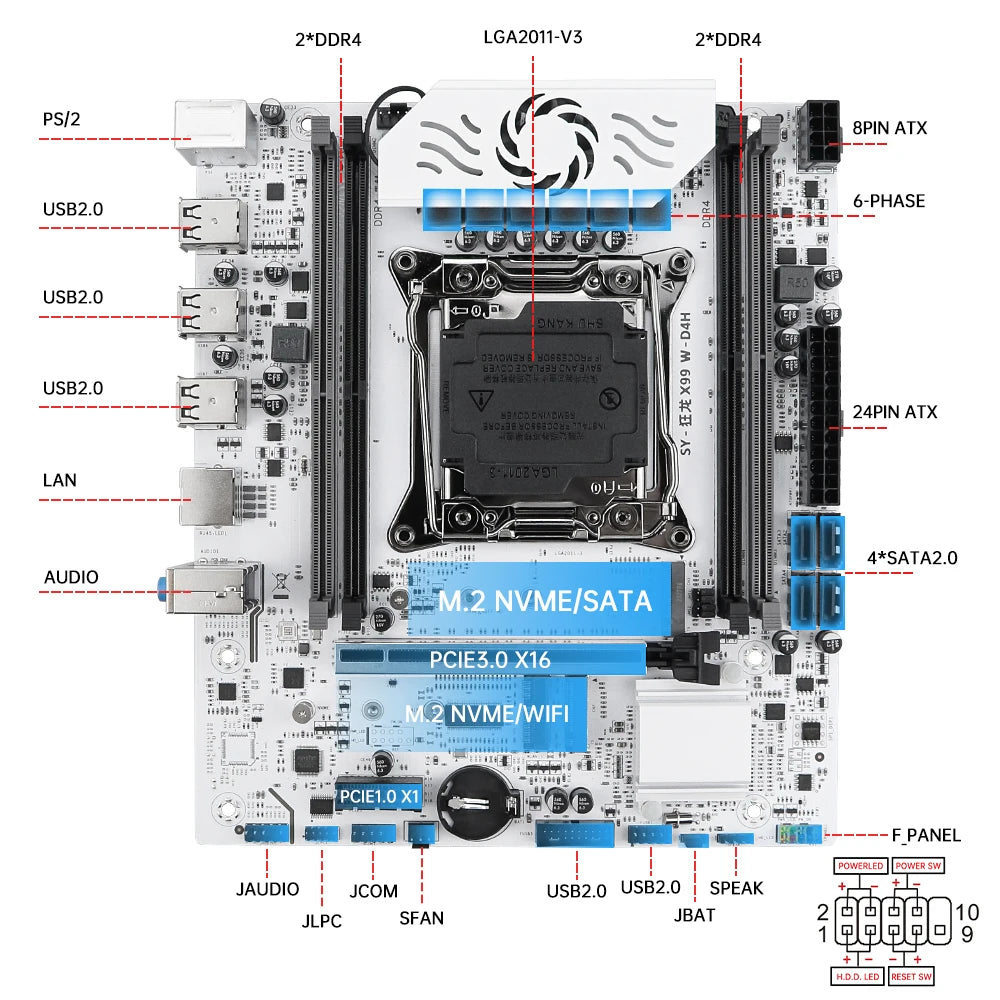

Functional Headers
1FPANEL (Front Panel header), 14Pin CPU Fan, 1*3Pin Fan, 1*JBAT, 1JLPC, 1SPEAK
Power Input
24Pin + 8Pin ATX power connectors
Dimensions
220 x 190mm
Intel X99
CPU
Intel Xeon E5 LGA2011-V3 Socket CPU
Memory
4*DDR4 DIMM slots, 2133/2400MHz (Max)
Supports up to 128GB (32GB*4)
Black slots are primary channels
Storage
2*M.2 slots:
Upper slot: NVMe Protocol (PCIe 3.0 x4/SATA2.0)
Lower slot: NVMe Protocol (PCIe 3.0 x4)
4*SATA interfaces (SATA2.0)
Network
1*RJ45 port
LAN Chip: RGigabit Ethernet
PS/2
1*KB (Keyboard) port + 1*MS (Mouse) port
Audio
Ports: 1Line Out, 1MIC In, 1*Line In
Internal header: 1*F_Audio
USB Interfaces
Rear I/O: 6*USB3.0
Internal headers:
2*USB2.0 header (expandable to 2 USB2.0 ports)
PCIE Slots
PCIE1: PCIE x16 3.0 slot (from CPU)
PCIE2: PCIE x1 1.0 slot (from PCH)
Functional Headers
1FPANEL (Front Panel header), 14Pin CPU Fan, 1*3Pin Fan, 1*JBAT, 1JLPC, 1SPEAK
Power Input
24Pin + 8Pin ATX power connectors
Dimensions
220 x 190mm
Note:

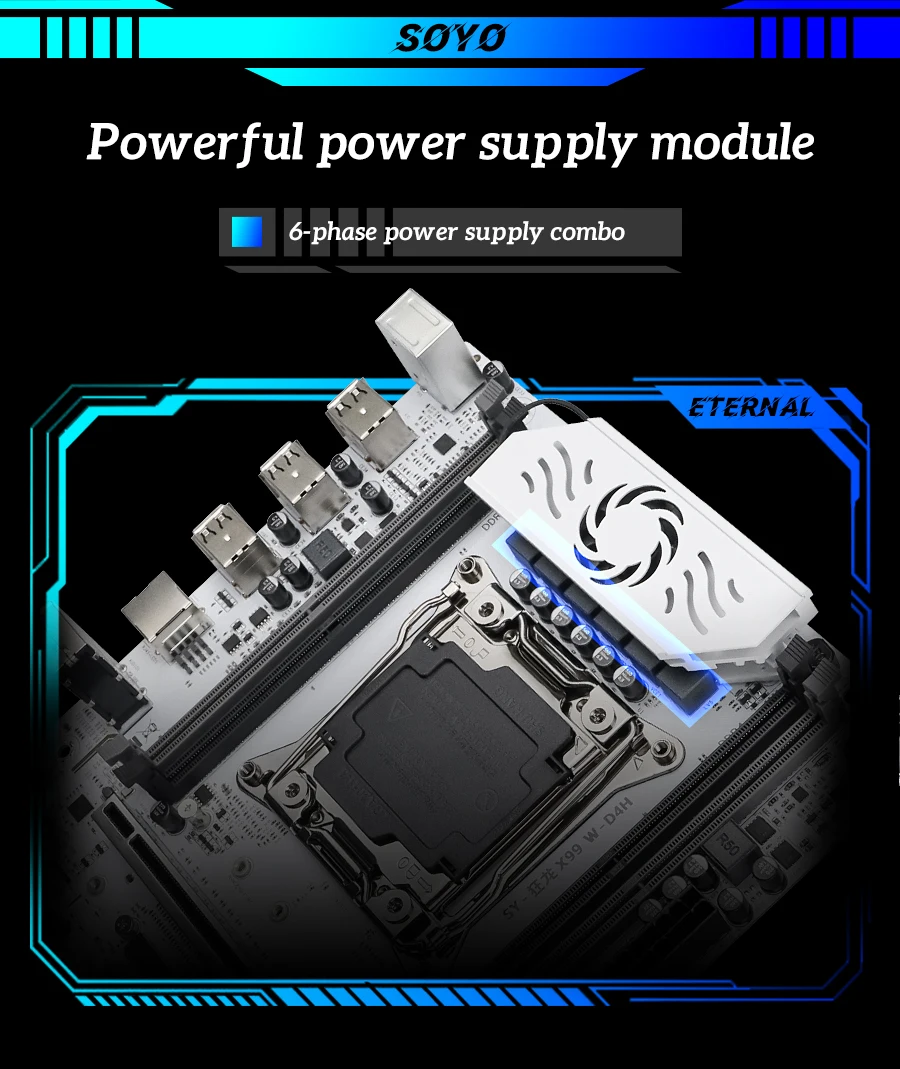

(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (Gray slots) first. The motherboard's Black RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
(5) For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
