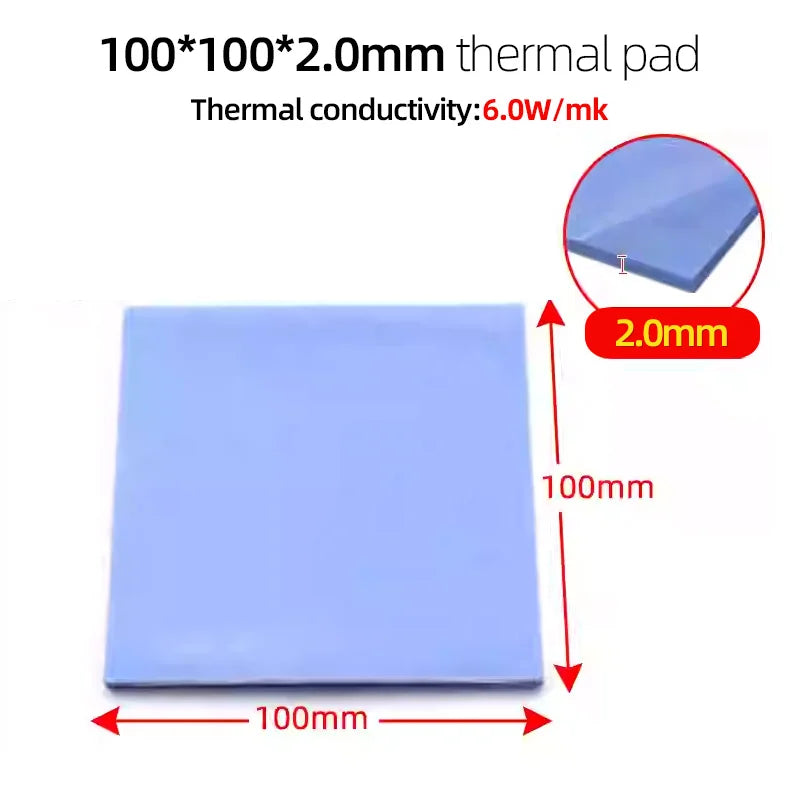

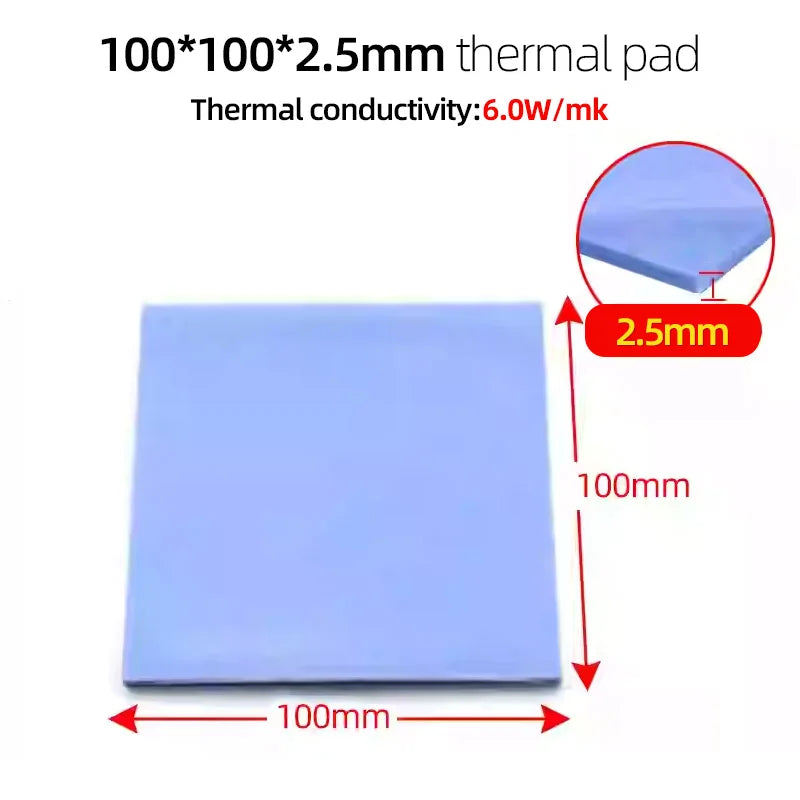

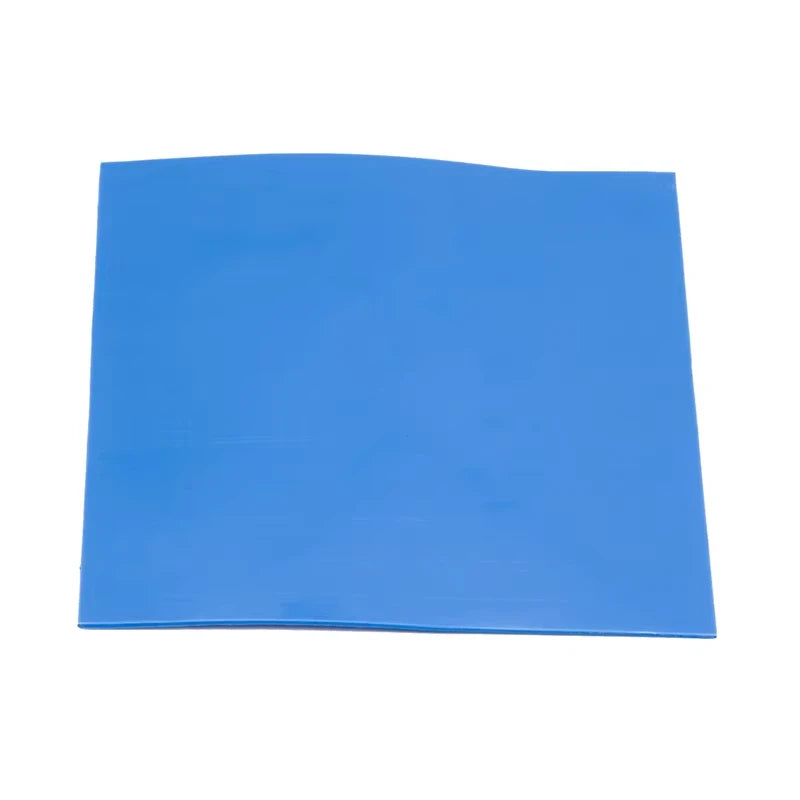

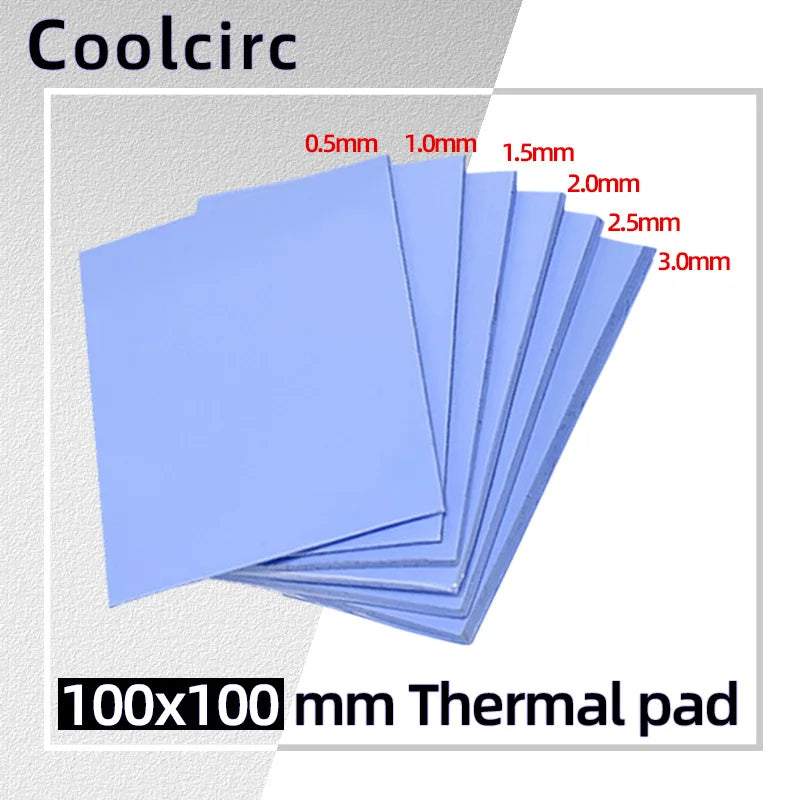

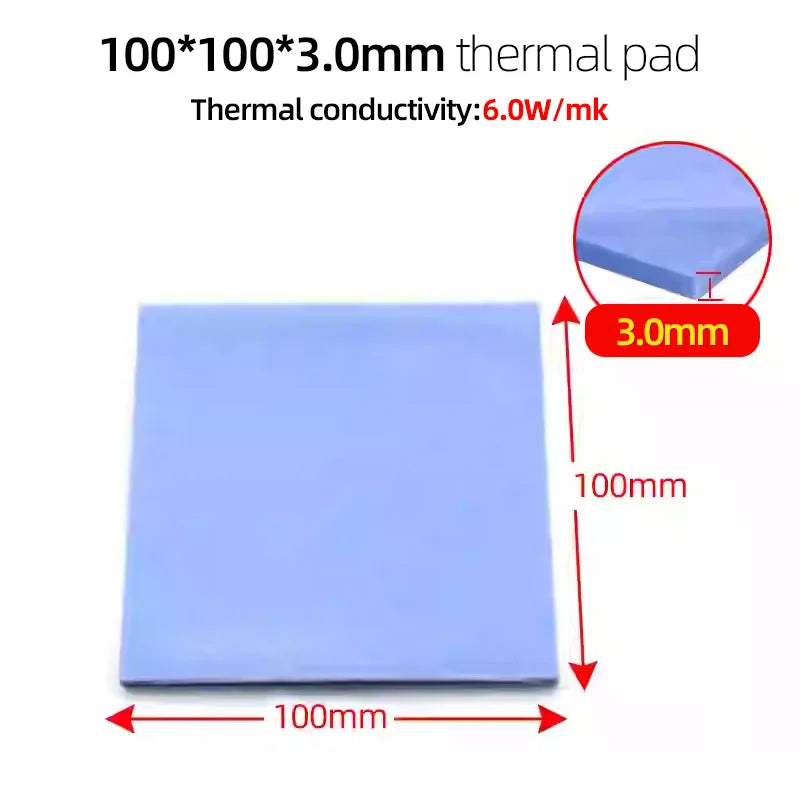

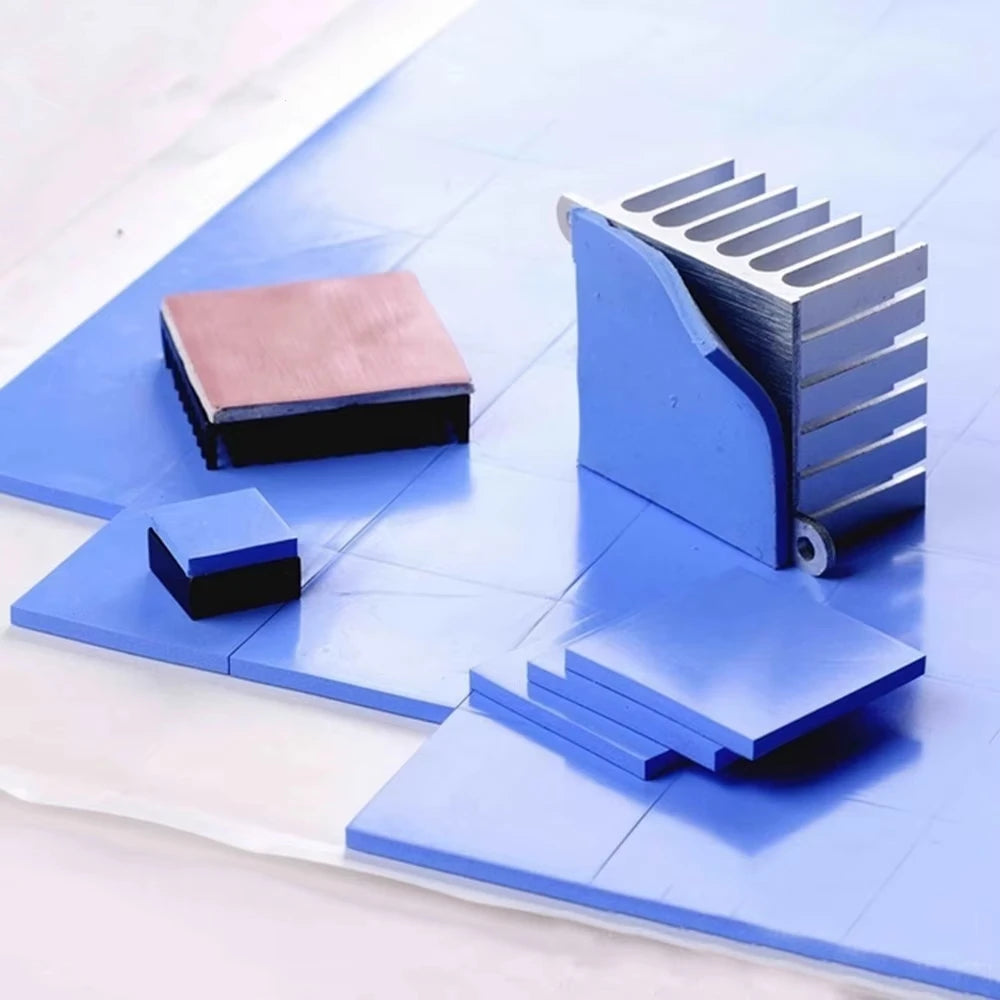

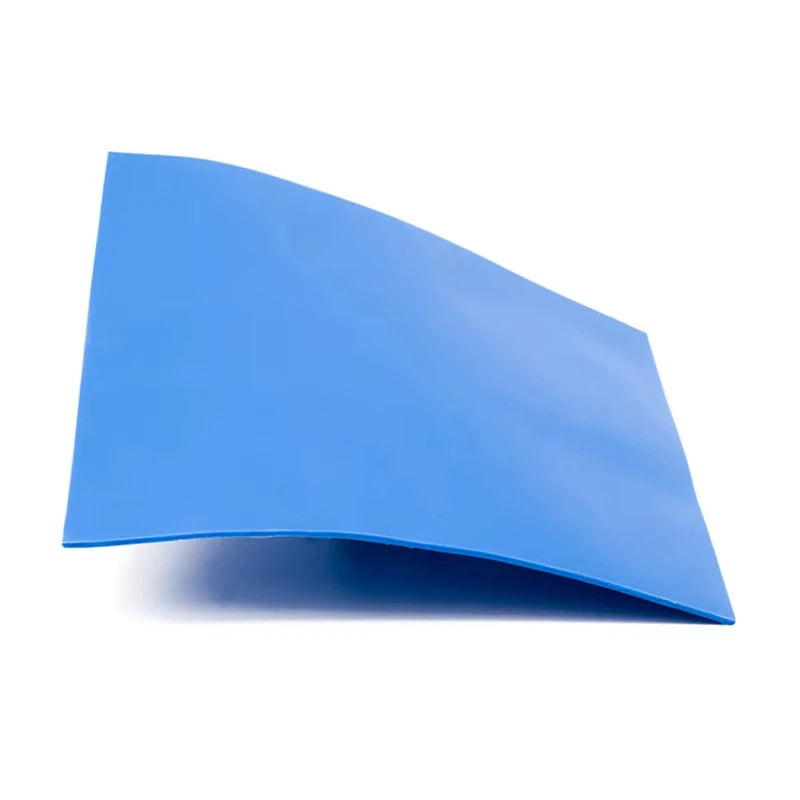

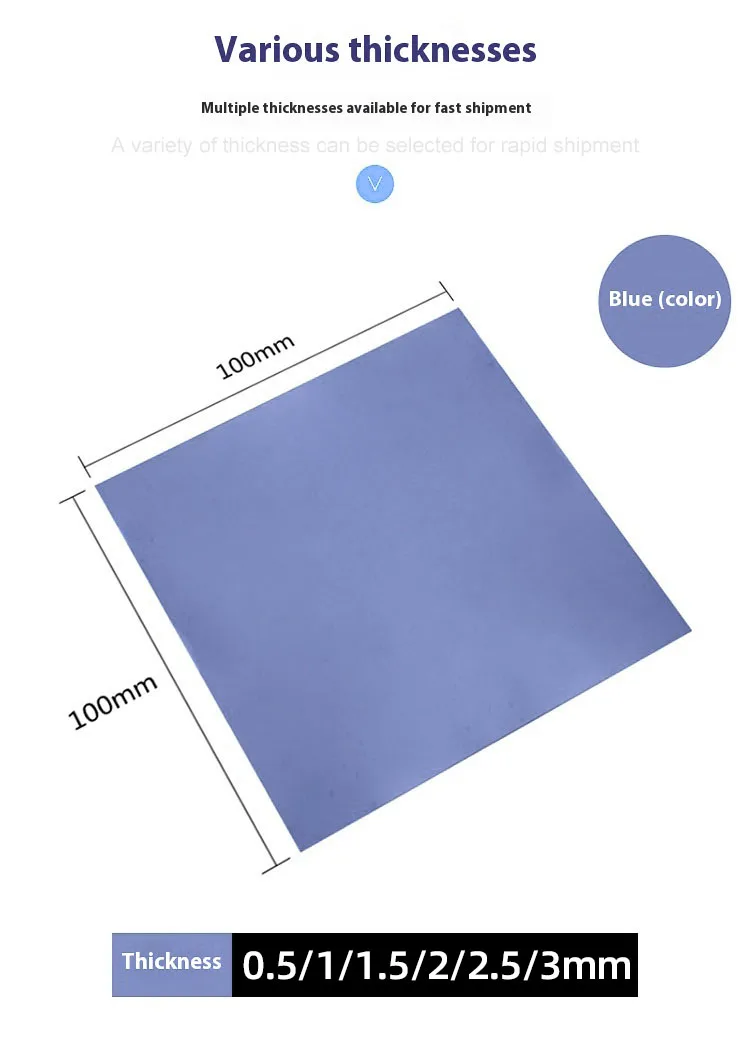

100mm 6.0W/mK PC Computer Processor GPU CPU Heatsink Cooling Thermal Pad High Performance 0.5/1/1.5/2/2.5/3mm Multi Thickness

Instructions for use

Simple operation, three steps to teach you how to use thermally conductive silicone gaskets

1. Clean the surface

Clean the surface of the object to be stuck or attached, and remove dust and oil stains, etc.

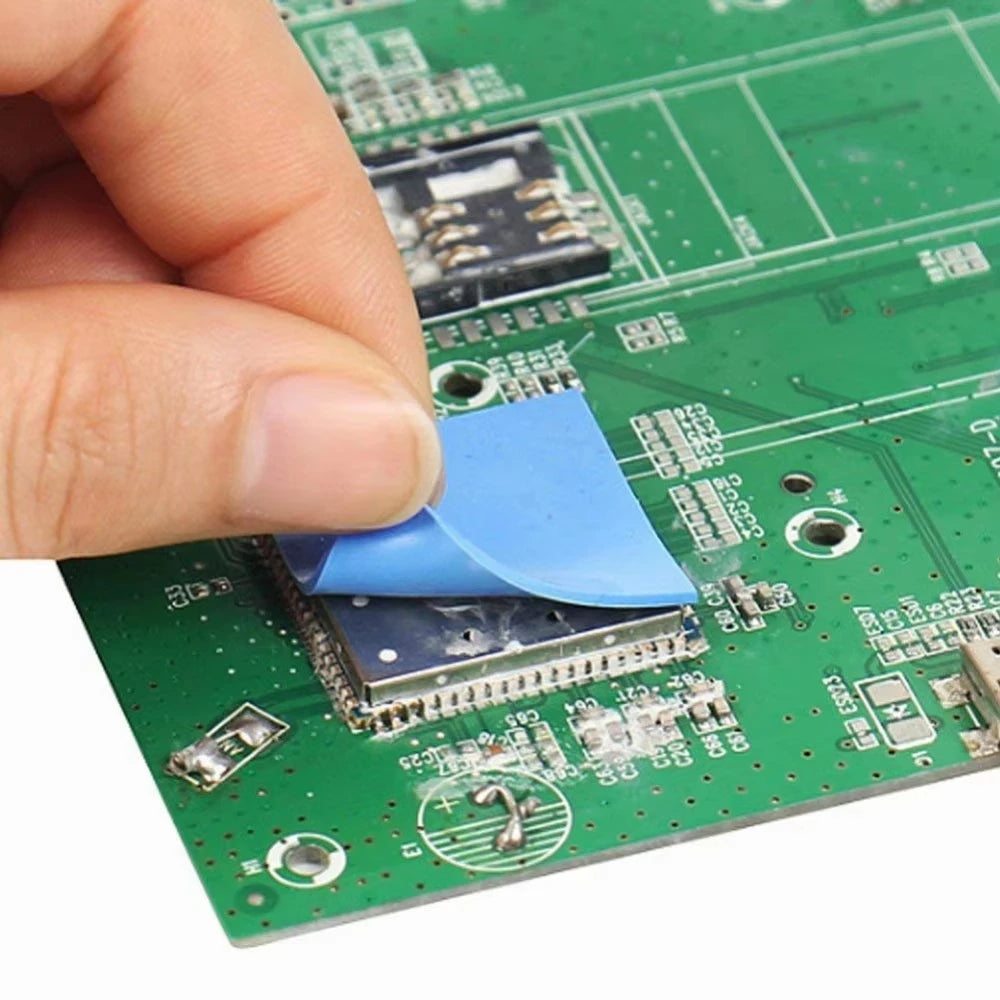

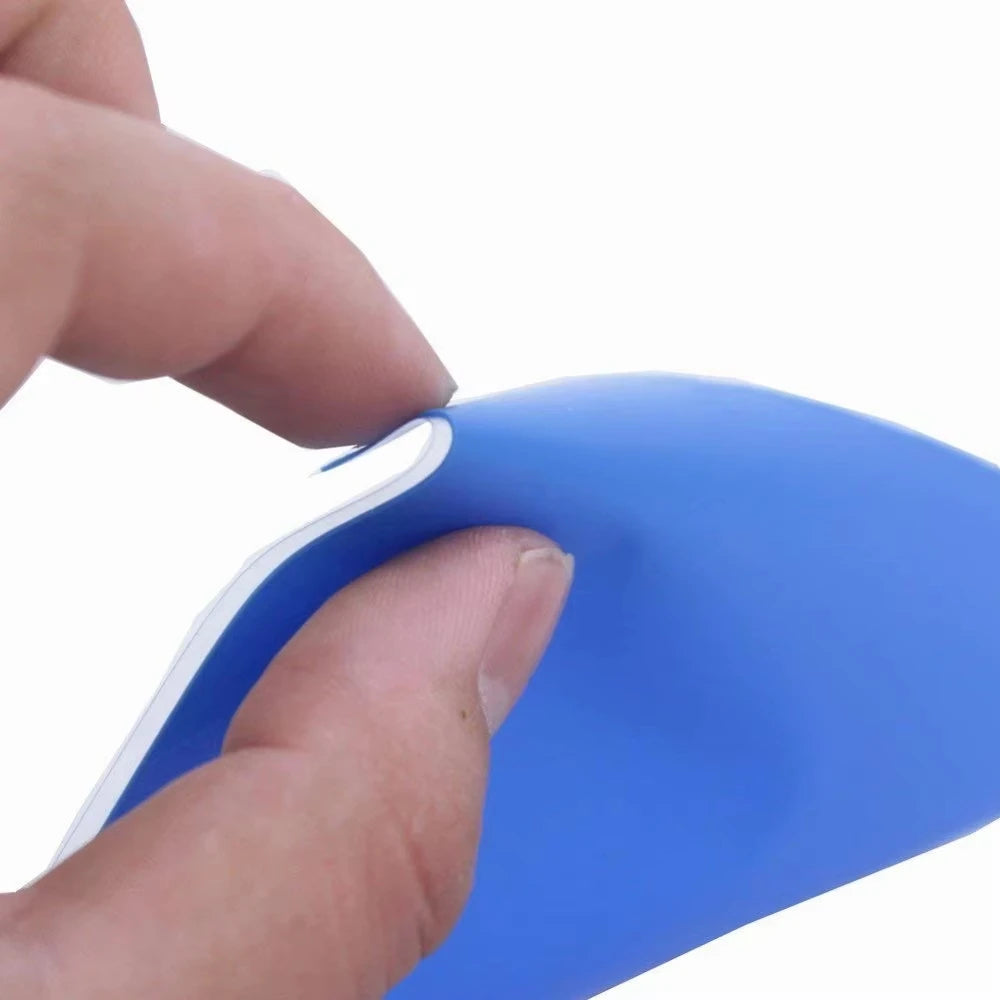

2. Tear off one side of the protective film first. Do not tear off both sides of the protective film at the same time to avoid damage to the product's stickiness and thermal conductivity.

3. Fixed heat sink

Place the side with the protective film removed on the surface of the radiator. After installation, apply a certain amount of pressure to the radiator to ensure that the thermal conductive sheet is fixed, and then peel off the protective film on the other side.

Application scope

Applied to PC motherboards in power supply, LCD/PDPTV, LED lighting, automotive electronics, optoelectronics, notebooks, computers and other industries, such as video memory, north and south bridge chips, memory chipsets, motherboard/graphics chips, ICs, etc.;

It has a special use for people who repair laptop motherboards. When the bare board is powered on and tested, it is inconvenient to put on the radiator. We can cut a small piece on the north and south bridges and the CPU, and it will be fine after a few minutes of booting.

Note: According to customer feedback, the silicone sheet is not very good at dissipating heat when used on the CPU, but it is good on the north and south bridges. If it is used on the CPU, it is recommended to use CPU thermal paste (for reference only)
